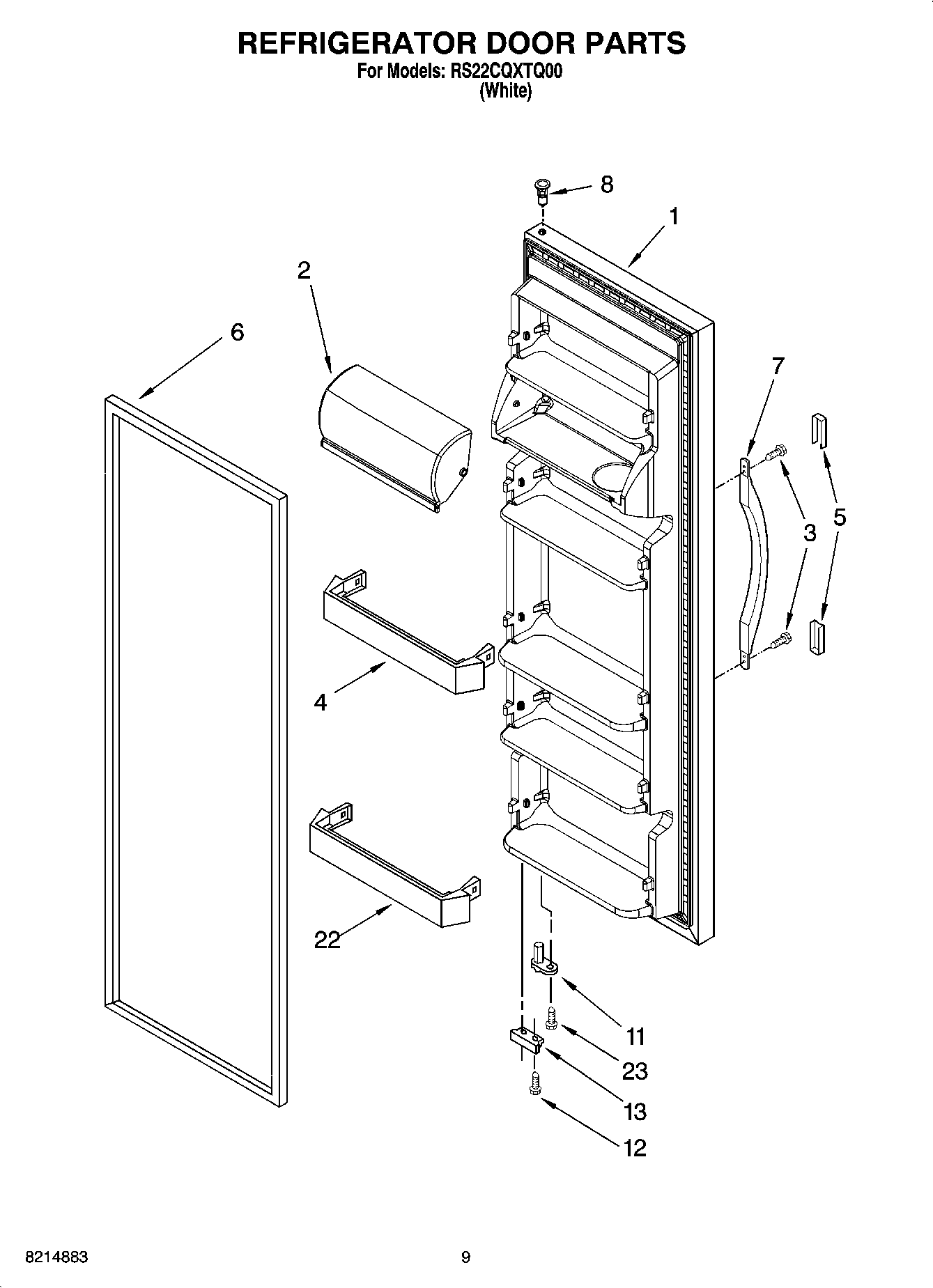

RS22CQXTQ00 06 – REFRIGERATOR DOOR PARTS

RS22CQXTQ00 06 – REFRIGERATOR DOOR PARTS

Written by

in

RS22CQXTQ00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
2WP2256101 Whirlpool Dairy Door
3WP489491 Whirlpool Refrigerator Screw
4Door Bin (4)
5WP2193353W Whirlpool Refrigerator Trim Handle
62159073 Whirlpool Refrigerator Door Gasket
7Handle, Center (White)
8WP2182181 Whirlpool Refrigerator Thimble
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
22WP2309941 Whirlpool Refrigerator Door Bar Trim
23WP3400012 Whirlpool Refrigerator Screw
