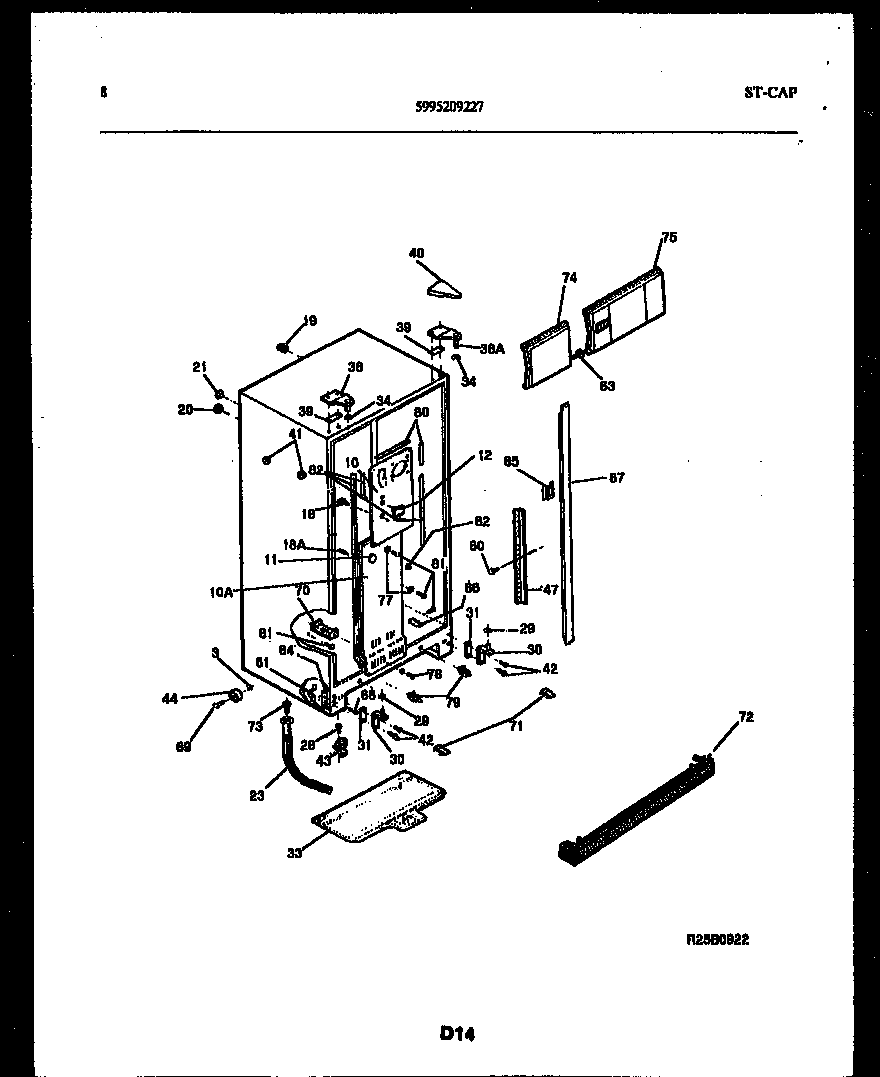

RS22F5WX1A 05 – CABINET PARTS

Products

Position	Product
*45422	CLIP-WIRING HARNESS
*45422	PLUG, BUTTON, CABINET LINER (NI)
43	ROLLER-FRONT (2)
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 5303001030
47	CHANNEL-SHELF MTG (2)
60	5304455852 Frigidaire Refrigerator Screw
61	WCI 5300077210
62	WCI 5303001231
63	WCI 5303001213
64	WCI 5303001273
65	WCI 5303001281
65A	WCI 5300169100
66	WCI 08017447
67	WCI 3916446
68	WCI 5308000013
69	WCI 5308000266
70	WCI 5308000738
71	CLIP, GRILLE (2)
72	WCI 3200661
73	WCI 5308000853
74	WCI 5303275302
75	WCI 5303275430
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
79A	CLIP-CABLE
79	5303289051 Frigidaire Refrigerator Light Switch
80	WCI 5303001219
82	5304455650 Frigidaire Refrigerator Screw
