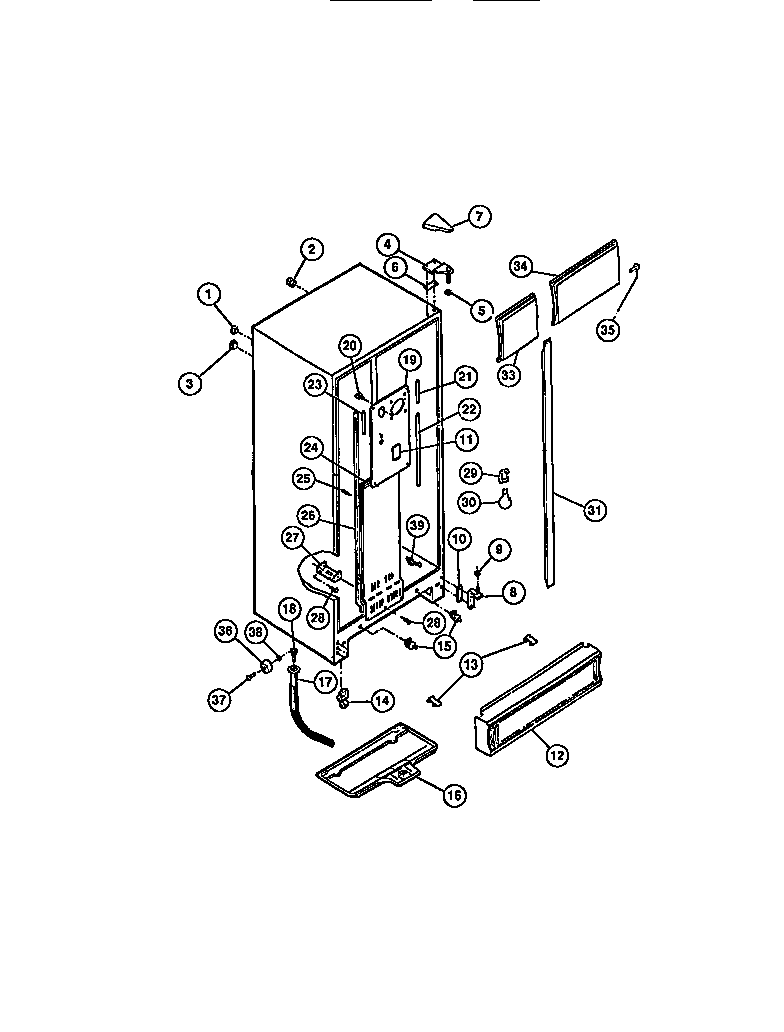

RS22F7FU1D 04 – CABINET

Products

PositionProduct
*56080WCI 5303001288
*56081PLUG, BUTTON, CABINET LINER (NI)
1WCI 5303001287
2TUBE-RUBBER
3WCI 5303001286
4AWCI 5303001062
4CTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4B241710601 Frigidaire Refrigerator Screw
4WCI 5308012934
5WCI 5308000186
6SHIM – UPPER HINGE
7COVER-HINGE-AVOCADO
8ASCREW-HINGE MTG (2) (NON-ILLUSTRATED)
8HINGE-BOTTOM
8BWCI 5303001273
9WASHER, .28 X .62 X .19, NYLON
10BWCI 5300077210
10SHIM-BTM HINGE (3)
10AWCI 5308000013
11PLUG-DECORATIVE, ICE MAKER HOLE
12WCI 5317154002
13CLIP, GRILLE (2)
14ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
14ROLLER-FRONT (2)
155303289051 Frigidaire Refrigerator Light Switch
16WCI 5303001026
17WCI 5303209723
18WCI 5308000853
19WCI 5303006543
19ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
19B5303208309 Frigidaire Refrigerator Plug Hole
20SUPPORT-COIL COVER
21WCI 5303001219
22WCI 5303006765
23WCI 5317423401
24COVER-COIL LOWER
25WCI 5303001250
26GASKET, COVER (2)
27BWCI 5303001230
27AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27WCI 5308000738
29218906802 Frigidaire Light Lamp Socket
30316538904 Frigidaire Oven Lamp Light
31BWCI 5303001281
31AWCI 5300169100
31WCI 3916445
33WCI 5316445232
34LIGHT SHIELD-REF
35WCI 5303001213
36WCI 5303001030
37WCI 5308000266
38Nut,push-on
39DAMPER, MEAT KEEPER
39A5304455650 Frigidaire Refrigerator Screw
