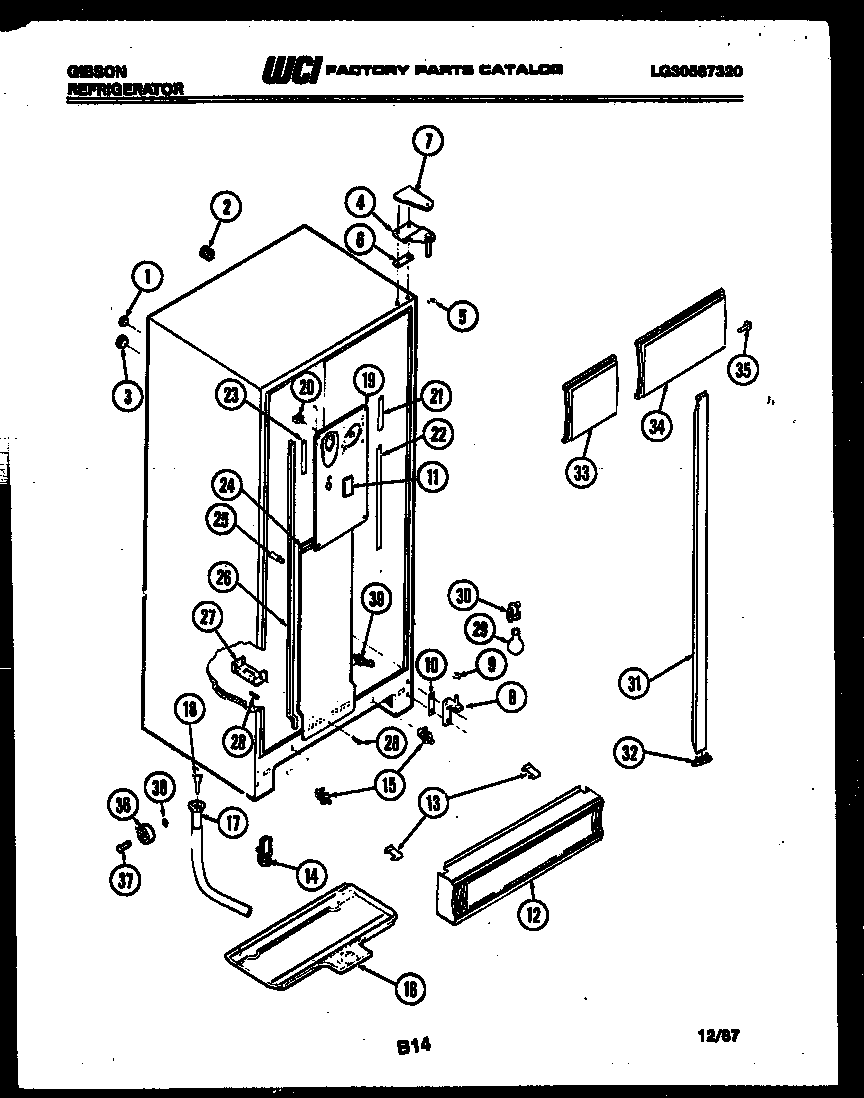

RS22F7WU1A 04 – CABINET PARTS

Products

Position	Product
*38800	WCI 162892-01
*38800	BUTTON, LINER
1	WCI G174734
2	TUBE, INSULATION (2)
3	WCI G174733
4A	WCI G183716
4	HINGE-TOP RS
4B	241710601 Frigidaire Refrigerator Screw
4C	TAPPING PLATE (2)
5	WASHER, NYLON
6	WCI G183861
7	COVER HINGE, WHITE
7	COVER HINGE, WHEAT
7	COVER, TOP HINGE, AVOCADO
7	COVER HINGE, COFFEE
7	COVER, TOP HINGE, ALMOND
8B	WCI G141673
8A	SCREW – 1/4 X 1 (2)
8	BRACKET-LOWER HINGE
9	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
10B	NUT, SPEED (2)
10A	WCI G142361
10	SHIM, HINGE
11	WCI G165416-07
12	WCI G171540-02
13	CLIP, GRILLE
14	ROLLER ASSY (2)
14A	SCREW, MTG (2) (NON-ILLUSTRATED)
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI G171125
17	241957901 Frigidaire Refrigerator Tube-Drain
18	WCI G171193
19A	NUT, ORIFICE (2)
19	WCI G169481-01
20	WCI G163669
21	WCI G165233
22	WCI G174234-02
23	WCI G174234-01
24	WCI G169477-03
25	WCI G169471
26	WCI G188000-03
27B	WCI G184851
27	WCI G158022
27A	WASHER
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	316538904 Frigidaire Oven Lamp Light
31A	WCI G169100
31	WCI G164643-09
31	MULLION-COFE
31	WCI G164643
31	MULLION-ALMD
31B	WCI G169297
31	MULLION AVOC.
32	TRIM-MULLN-ALMD
32	TRIM-MULLN-COFE
32	WCI G169745-09
32	TRIM-MULLN-AVOC
32	MULLION TRIM-WHITE
33	LIGHT SHIELD-FRZR
34	WCI G169601-18
35	WCI G165177
36	ROLLER (2)
37	WCI G162809
38	NUT, DAMPER MOUNTING
39	WCI G164912-03
