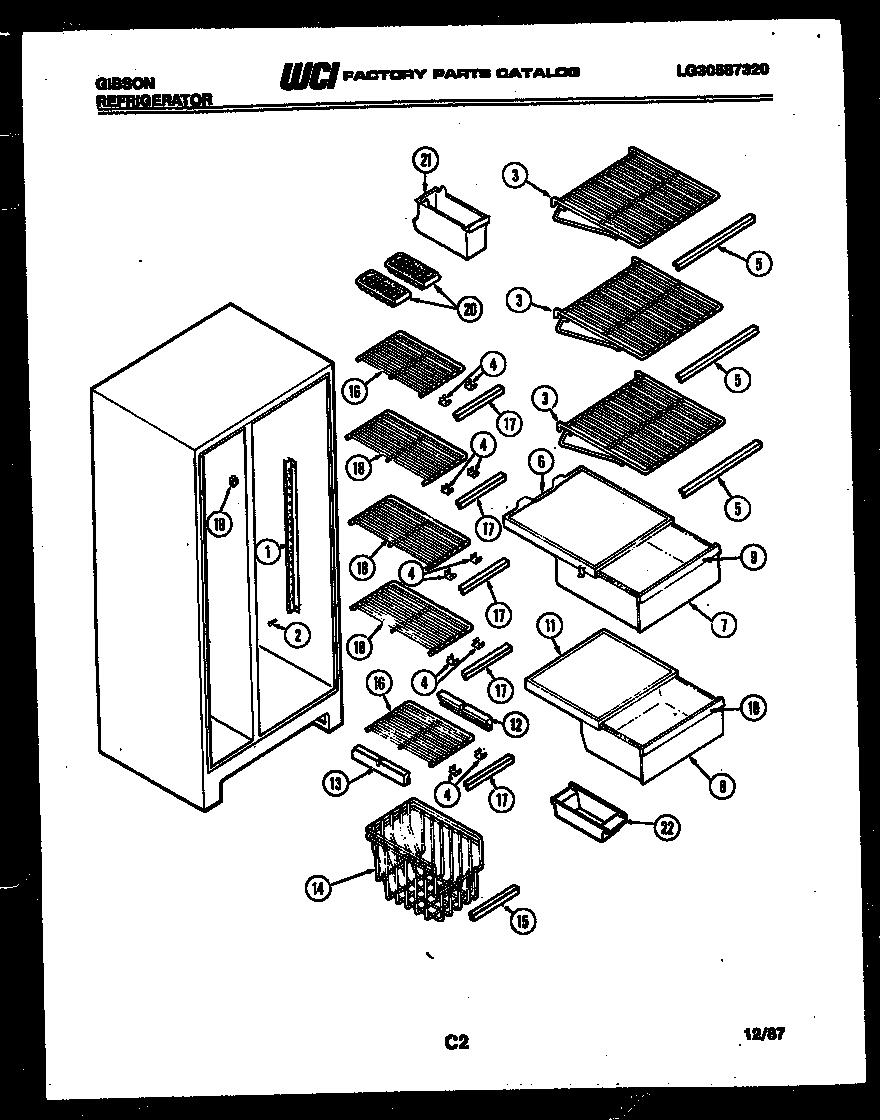

RS22F7WU1B 05 – SHELVES AND SUPPORTS

RS22F7WU1B 05 – SHELVES AND SUPPORTS

Written by

in

RS22F7WU1B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1CHANNEL-RS & LS
25304455852 Frigidaire Refrigerator Screw
3SHELF-REFRIG (4)
4CLIP – TRIM (12)
5WCI G172410-01
6COVER-UPR PAN
6AGASKET-COVER UPR (2) (NON-ILLUSTRATED)
7WCI G179709-03
8WCI G179710-02
9TRIM, UPPER PAN
10TRIM, LOWER PAN
11COVER-LWR PAN
12HANGER-BASKET RS
13HANGER-BASKET LS
14WCI 3015095
15WCI 3015108
16WCI G169658-02
17WCI G141727-32
18SHELF-FRZR (3)
195304509705 Frigidaire Refrigerator Grommet
20215667501 Frigidaire Refrigerator Ice Tray Primary
21WCI G163022-03
22WCI G173948-27
