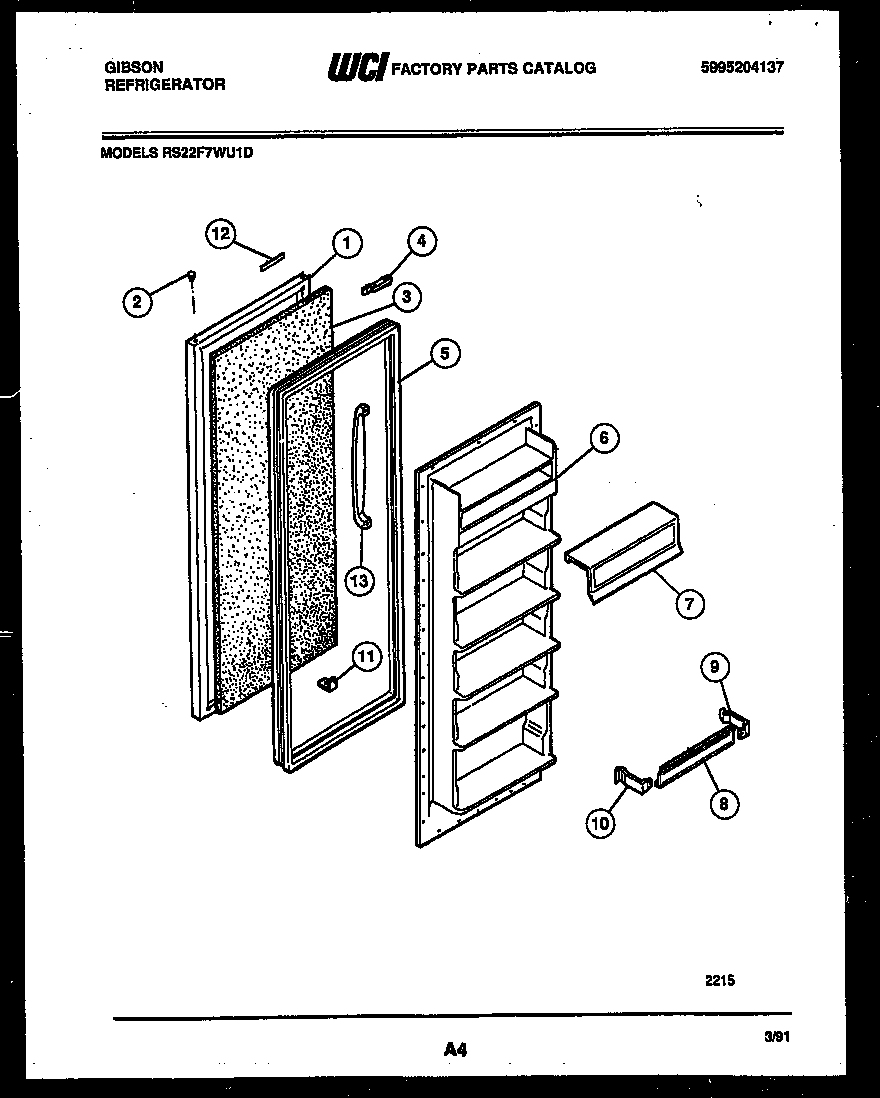

RS22F7WU1D 05 – REFRIGERATOR DOOR PARTS

RS22F7WU1D 05 – REFRIGERATOR DOOR PARTS

Written by

in

RS22F7WU1D 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
*40840WCI G176752
*40840WCI G185565
*40840ANCHOR NUT (2) (NON-ILLUSTRATED)
1WCI 5300177745
1REFRIGERATOR DOOR-AVOC
1REFRIGERATOR DOOR-WHEAT
1AWCI 5315230801
1WCI G177745-10
1WCI G177745-11
2WCI 5303001022
2ABEARING-HINGE
3INSULATION-BULK (NON-ILLUSTRATED)
4WCI 5303200272
4AWCI 5303001020
5GASKET-REFRIG DOOR
6WCI 3015088
7WCI 3015087
8WCI G490079-33
9WCI 3204850
10WCI 3204694
11WCI 5308000790
11A5304455651 Frigidaire Refrigerator Screw
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12NAMEPLATE
12CLABEL-LOWER
12BLABEL-UPPER (NON-ILLUSTRATED)
13DOOR HANDLE
