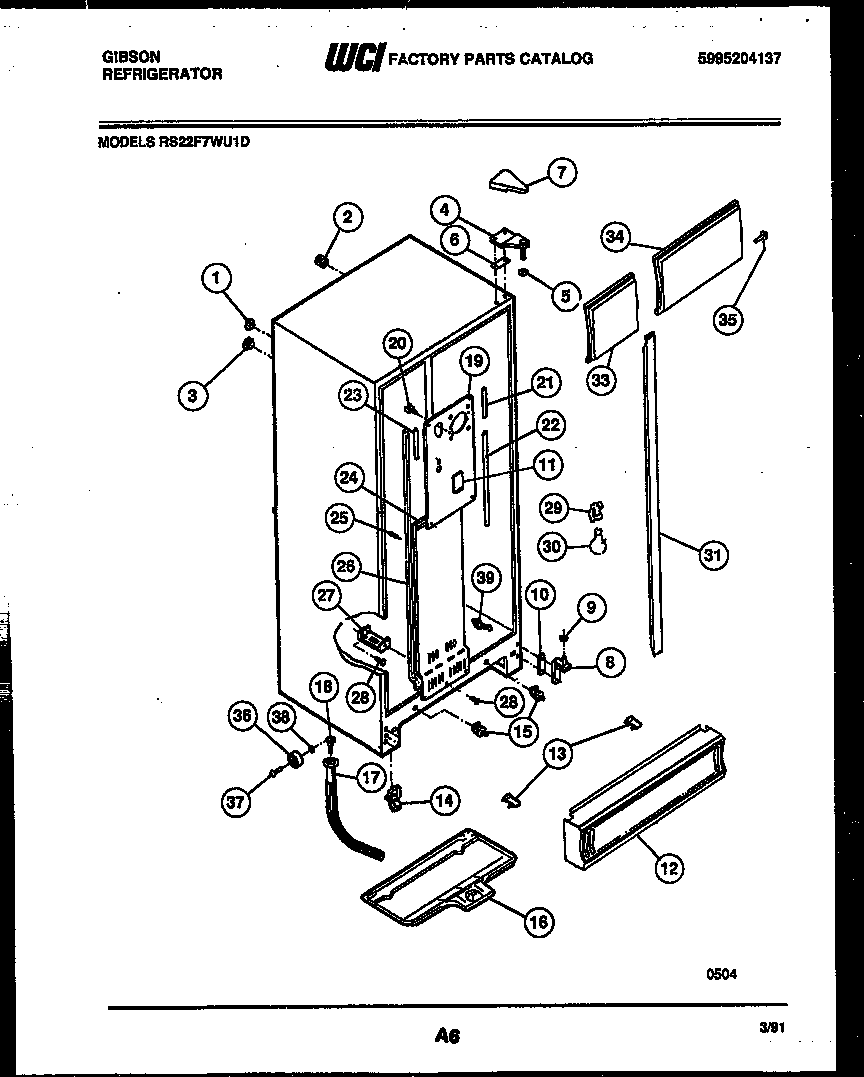

RS22F7WU1D 06 – CABINET

Products

Position	Product
*40850	WCI 5303001288
*40850	PLUG, BUTTON, CABINET LINER (NI)
1	WCI 5303001287
2	TUBE-RUBBER
3	WCI 5303001286
4C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4	WCI 5308012934
4B	241710601 Frigidaire Refrigerator Screw
4A	WCI 5303001062
5	WCI 5308000186
6	SHIM – UPPER HINGE
7	COVER-HINGE-AVOCADO
7	WCI 5303001666
7	COVER-UPPER HINGE, WHITE
7	COVER – HINGE-WHEAT
7	COVER-UPPER HINGE, ALMOND
8	HINGE-BOTTOM
8B	WCI 5303001273
8A	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
9	WASHER, .28 X .62 X .19, NYLON
10A	WCI 5308000013
10	SHIM-BTM HINGE (3)
10B	WCI 5300077210
11	PLUG-DECORATIVE, ICE MAKER HOLE
12	WCI 5317154002
13	CLIP, GRILLE (2)
14A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
14	ROLLER-FRONT (2)
15	5303289051 Frigidaire Refrigerator Light Switch
16	WCI 5303001026
17	WCI 5303209723
18	WCI 5308000853
19	WCI 5303006543
19B	5303208309 Frigidaire Refrigerator Plug Hole
19A	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
20	SUPPORT-COIL COVER
21	WCI 5303001219
22	WCI 5303006765
23	WCI 5317423401
24	COVER-COIL LOWER
25	WCI 5303001250
26	GASKET, COVER (2)
27A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27B	WCI 5303001230
27	WCI 5308000738
28	5304455650 Frigidaire Refrigerator Screw
29	218906802 Frigidaire Light Lamp Socket
30	316538904 Frigidaire Oven Lamp Light
31A	WCI 5300169100
31	WCI 3916445
31	WCI 5303916447
31A	WCI 5303001281
31	WCI 3916446
31	WCI 5303916448
31	WCI 5303916444
33	WCI 5316445232
34	LIGHT SHIELD-REF
35	WCI 5303001213
36	WCI 5303001030
37	WCI 5308000266
38	Nut,push-on
39	DAMPER, MEAT KEEPER
