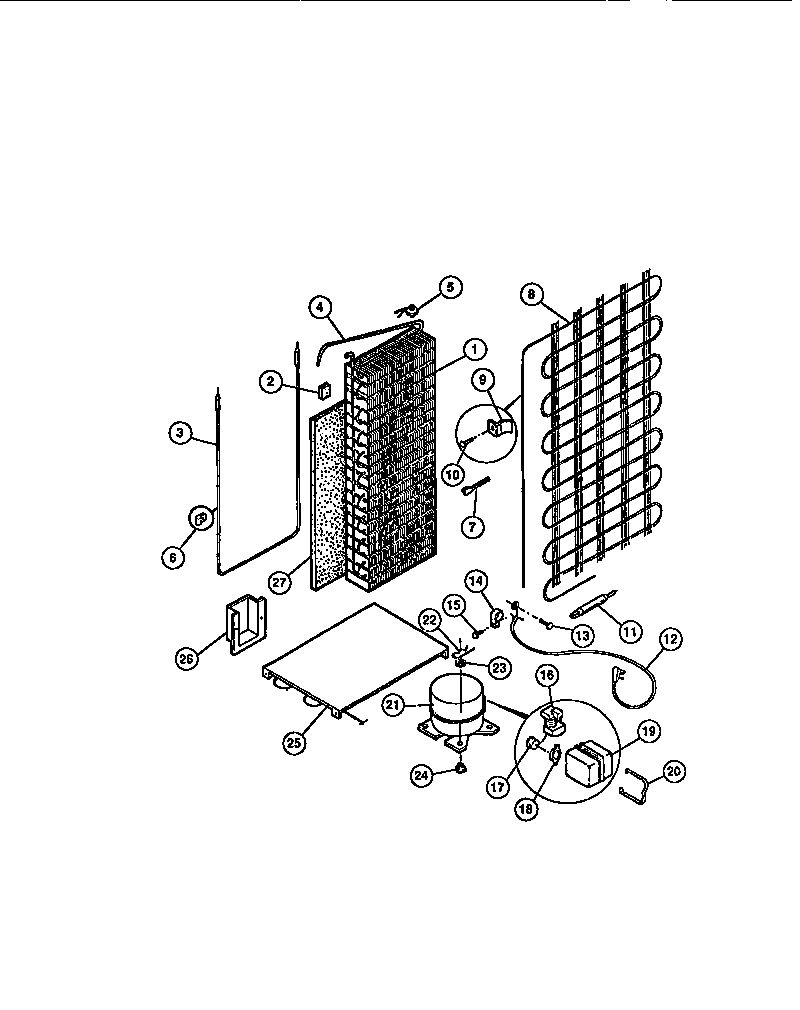

RS22F7YU1D 07 – SYSTEM AND AUTOMATIC DEFROST

Products

Position	Product
*56083	5308000133 Frigidaire Refrigerator Clamp
*56082	WCI 5308009616
*56085	WCI 5300189379
1	WCI 5303916605
2	WCI 5308000828
3	WCI 5303007568
4	WCI 5308017565
4B	WCI 5308009619
4A	CLAMP-TUBE
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI 5308002777
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI 5303007521
9	BRACKET, MOUNTIN, CONDENSER, (4)
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	CORD-ELECTRIC POWER
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	216594300 Frigidaire Refrigerator Starter
17	WCI 5303210976
18	CLIP-OVERLOAD
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	COMPRESSOR-W/ELECTRICALS
22	CLIP - COMPRESSOR MTG
23	WASHER-COMPR MTG
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25C	218843801 Frigidaire Refrigerator Screw
25	WCI 5308017112
25A	WCI 5308002782
25B	WCI 5308002780
26	WCI 5303001197
27	WCI 5303001235
