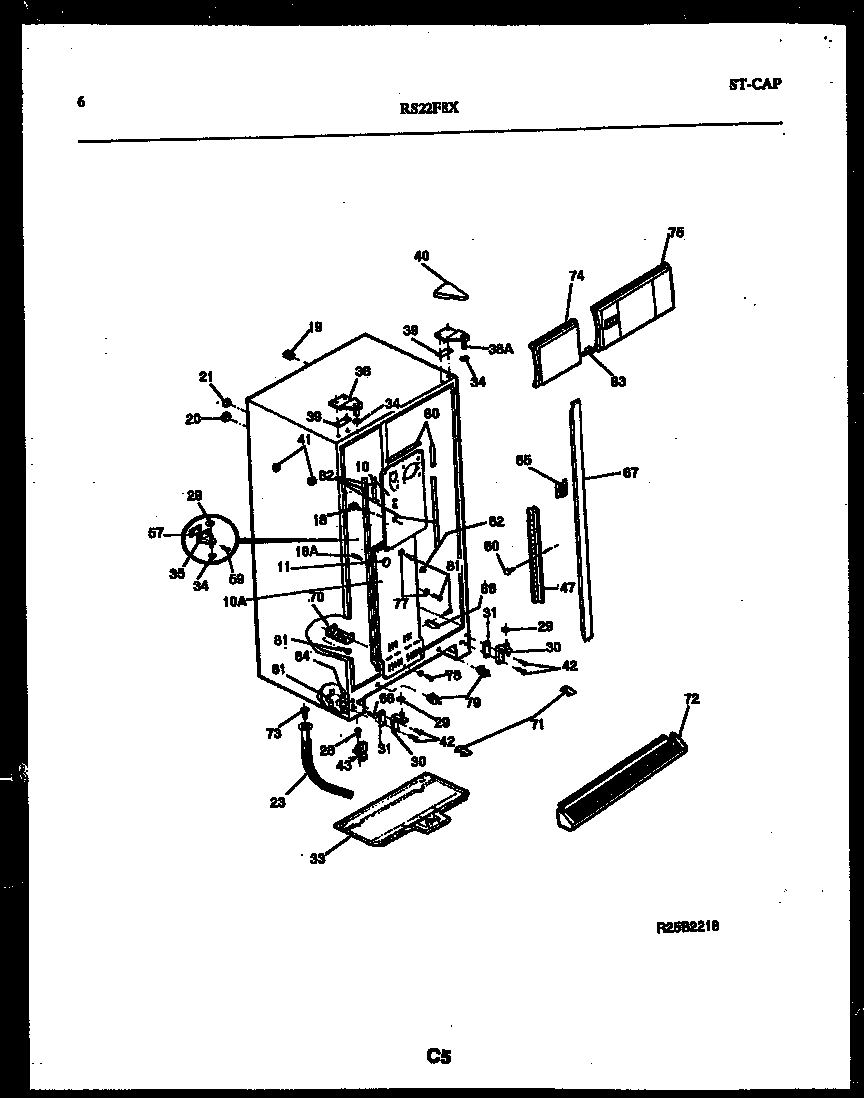

RS22F8DX1C 04 – CABINET PARTS

Products

Position	Product
10A	WCI 08000824
10C	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B	WCI 5303209636
10	WCI 5303006543
11	5303208309 Frigidaire Refrigerator Plug Hole
18	SUPPORT-COIL COVER
18A	WCI 5303001250
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
23A	CLAMP-TUBE
23	WCI 5303209723
28	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29	WASHER, .28 X .62 X .19, NYLON
30	HINGE-BOTTOM
31	SHIM-BTM HINGE (3)
33	WCI 5303001026
34	WCI 5308000186
35	WCI 5300169531
38	WCI 5303001062
38B	241710601 Frigidaire Refrigerator Screw
38A	WCI 5308012934
38C	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM – UPPER HINGE
40	COVER-UPPER HINGE, ALMOND
41	5304509705 Frigidaire Refrigerator Grommet
42	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	ROLLER-FRONT (2)
65A	WCI 5300169100
