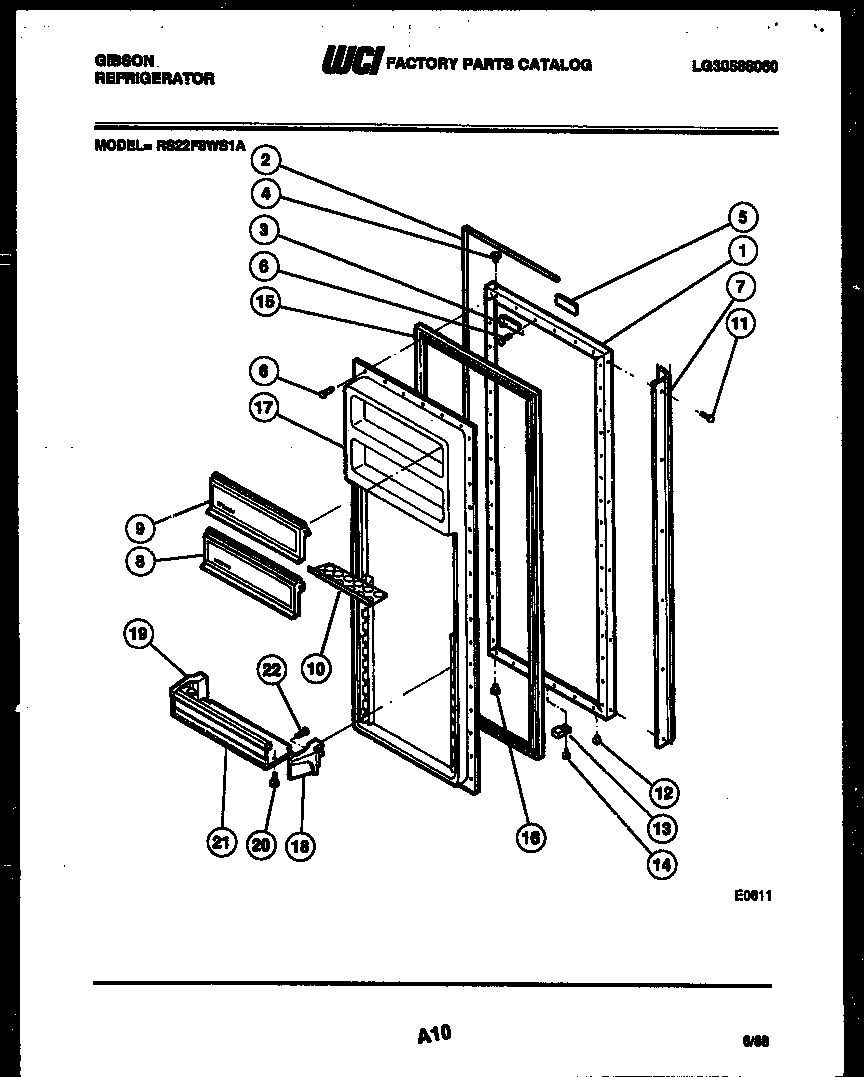

RS22F8WS1A 02 – REFRIGERATOR DOOR PARTS

RS22F8WS1A 02 – REFRIGERATOR DOOR PARTS

Written by

in

RS22F8WS1A 02 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1WCI G179400-09
1WCI G179400-08
1WCI G179400
1WCI G179400-10
1WCI G179400-11
2WCI G170573-05
3DOOR CLOSER
4WCI G183139
5LABEL-UPPER (NON-ILLUSTRATED)
5ALABEL, LOWER
5NAMEPLATE
7WCI G170619-03
9WCI G170930-14
10WCI G173948-27
11WCI G185566
12WCI G152308-01
13BUMPER-LIGHT SW.
145304455651 Frigidaire Refrigerator Screw
15WCI G180551-02
16BEARING, HINGE (3)
17WCI G171411-02
18SUPPORT-SHELF RH (4)
19SUPPORT-SHELF LH (4)
20WCI G101890
21WCI G164109-21
22WCI G167115
