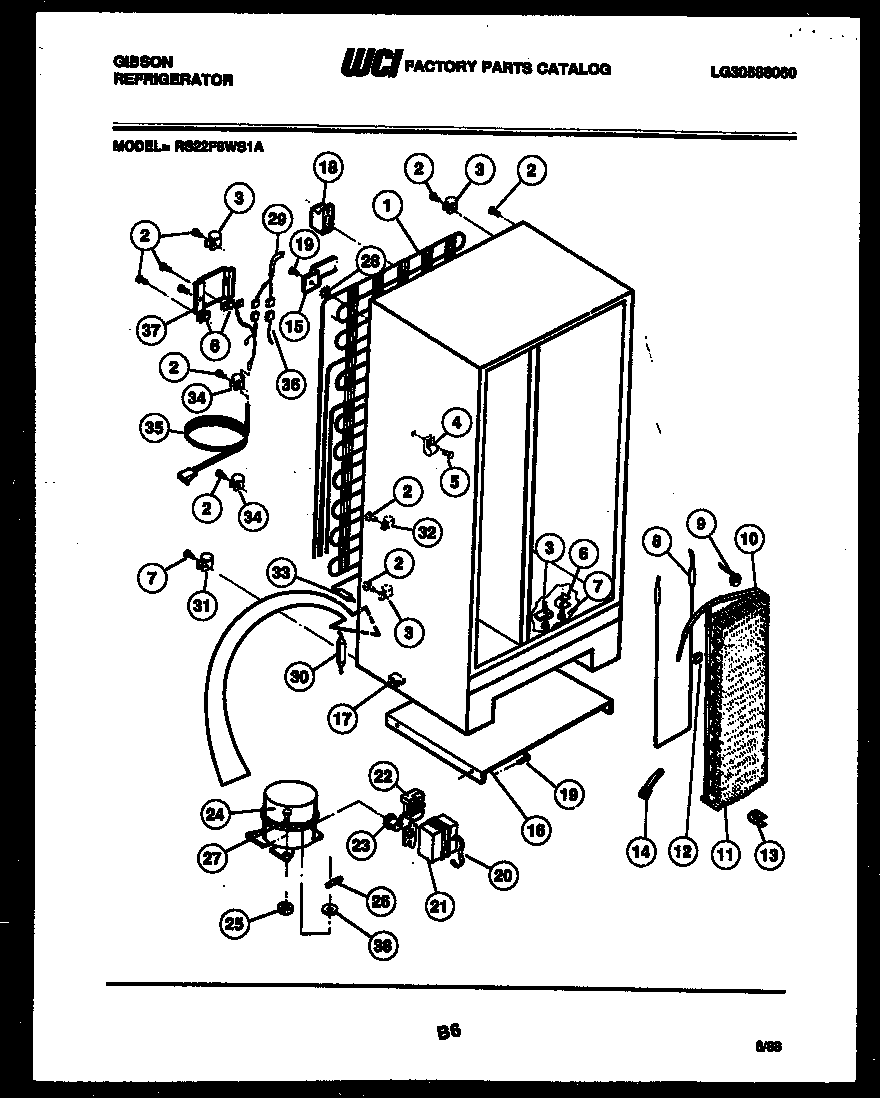

RS22F8WS1A 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G188597
25304455651 Frigidaire Refrigerator Screw
3CLAMP-TUBE (NON-ILLUSTRATED)
4WCI G166705
55304455650 Frigidaire Refrigerator Screw
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
7218843801 Frigidaire Refrigerator Screw
8WCI G157191
95303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10EXCHANGER-HEAT
11WCI G189612
12WCI G169493
13WCI G167363
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15BRACKET, COND. MTG (4)
16WCI G188596
17CLIP PAN
18WCI G171111
195308000039 Frigidaire Refrigerator Screw
205303006412 Frigidaire Refrigerator Cover Mounting Strap
22WCI G182225-04
23WCI G188727
24COMPRESSOR
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26CLIP, COMPRESSOR MOUNTING (4)
27SCREW – 1/4-20 (3) COMP. MTG.
28WASHER
29WCI G169486
305303305677 Frigidaire Replacement Filter Dryer Filters
32240396801 Frigidaire Refrigerator Tube Clamp
33SLEEVE-CONNECTOR
35CORD, SERVICE
36WIRING HARNESS-COMPR & LIGHTS
37WCI G183584
37AWCI G189379
38WASHER, COMPRESSOR MOUNTING (4)
