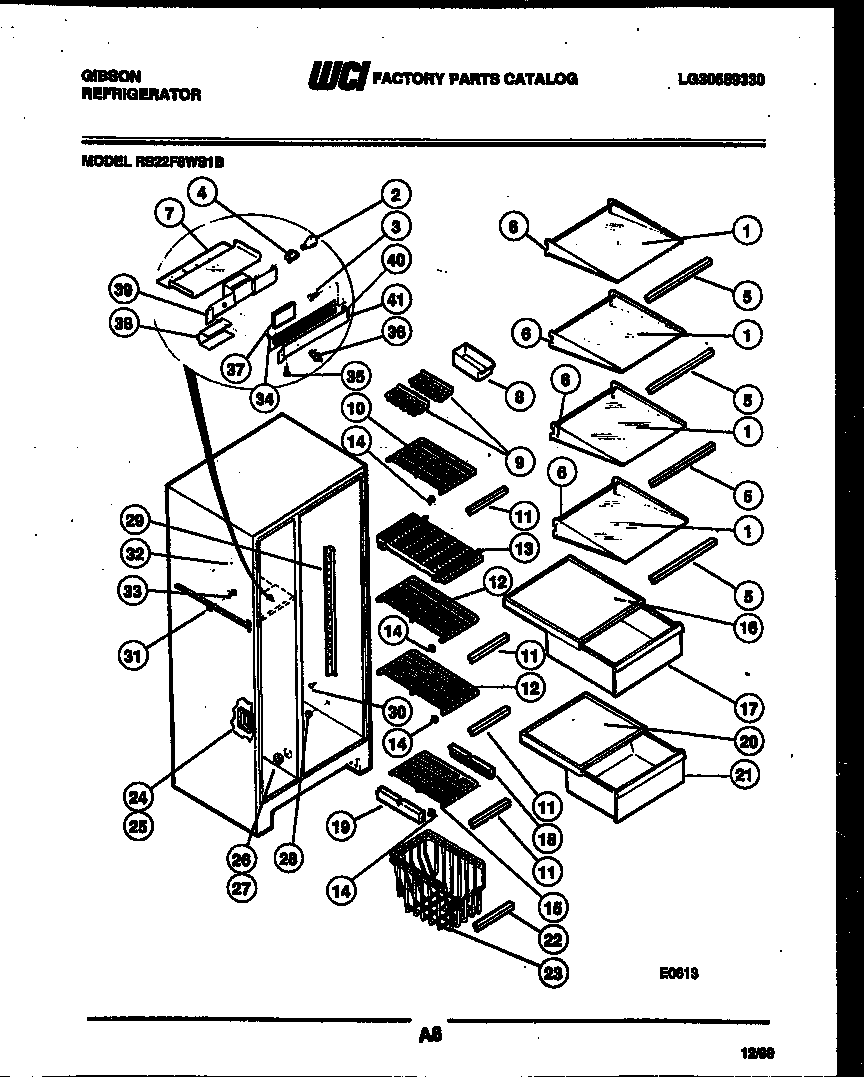

RS22F8WS1B 05 – SHELVES AND SUPPORTS

RS22F8WS1B 05 – SHELVES AND SUPPORTS

Written by

in

RS22F8WS1B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*16348CLIP – TRIM (12)
1WCI G171654-44
2316538904 Frigidaire Oven Lamp Light
3SCREW, BRACKET MOUNTING (4)
4SOCKET LIGHT
5WCI G172410-01
6WCI G186156-03
7WCI G169635
8WCI G163022-03
9215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI G141727-32
12WCI G169658-05
13WCI G169712
145304509705 Frigidaire Refrigerator Grommet
15WCI G169658-06
16COVER-UPR PAN
17WCI G179709-03
18HANGER-BASKET RS
19HANGER-BASKET LS
20COVER-LWR PAN
21WCI G179710-02
22WCI 3015108
23WCI 3017211
24WCI G166800
25WCI G166801
26WCI G166802
27WCI G166803
28BUTTON, PLUG, LINER (2)
29CHANNEL-RS & LS
30SCREW – 1/4 X 1 (2)
32BUTTON, LINER
335304455650 Frigidaire Refrigerator Screw
34WCI G169756
35SCREW 8-18 X 3/8
365303289051 Frigidaire Refrigerator Light Switch
37WCI G175156
38WCI G169516
39WCI G169529
40WCI G169530-09
40WCI G169530-11
40WCI G169530-10
40WCI G169530-08
40WCI G169530-01
41WCI G169490-08
41WCI G169490-09
41WCI G169490-01
41WCI G169490-11
41WCI G169490-10
