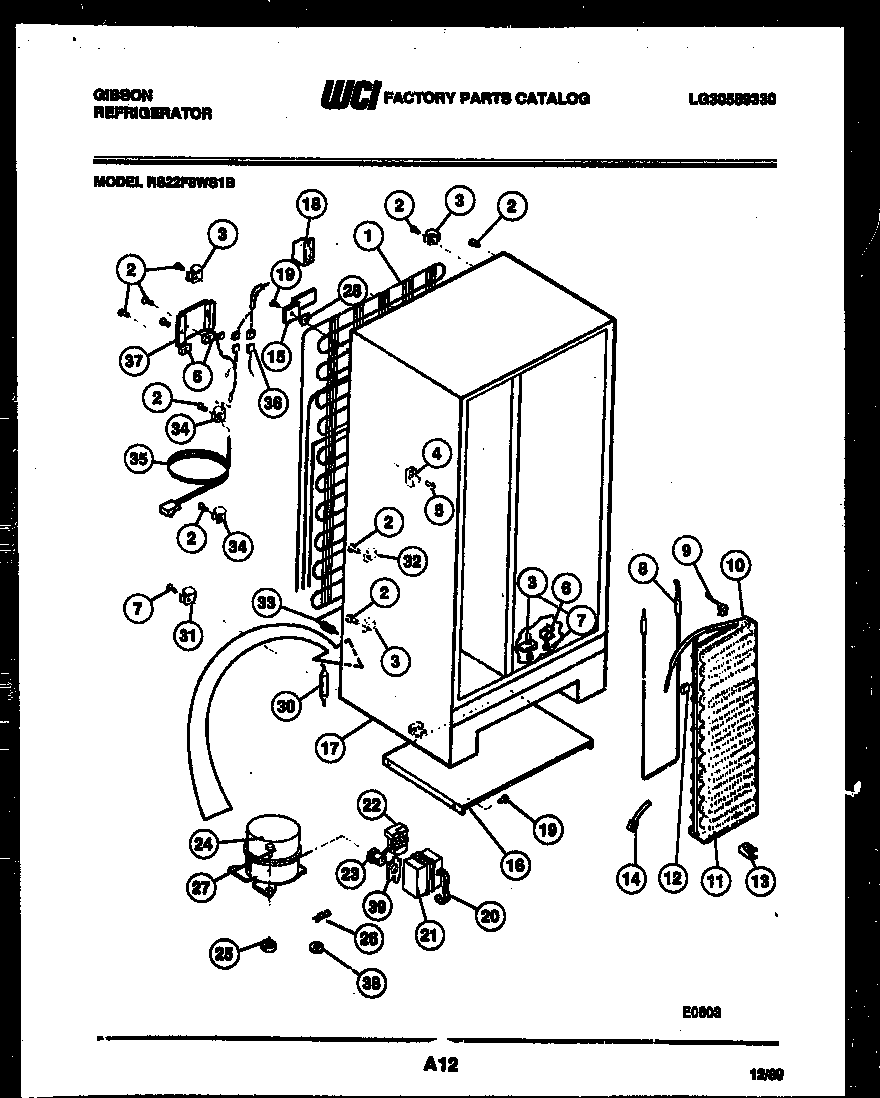

RS22F8WS1B 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

RS22F8WS1B 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RS22F8WS1B 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI G188597
25304455651 Frigidaire Refrigerator Screw
3CLAMP-TUBE (NON-ILLUSTRATED)
4WCI G166705
55304455650 Frigidaire Refrigerator Screw
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
7218843801 Frigidaire Refrigerator Screw
8WCI 3007568
95303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
10WCI G189609
11WCI 3206421
12WCI G169493
13WCI G167363
145308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
15BRACKET, COND. MTG (4)
16WCI G188596
17CLIP PAN
18WCI G171111
195308000039 Frigidaire Refrigerator Screw
205303006412 Frigidaire Refrigerator Cover Mounting Strap
22WCI G182225-04
23WCI G188727
24COMPRESSOR WITH ELECTRICALS
25218513300 Frigidaire Refrigerator Compressor Mount Grommet
26CLIP, COMPRESSOR MOUNTING (4)
27SCREW – 1/4-20 (3) COMP. MTG.
28WASHER
29WCI G169486
305303305677 Frigidaire Replacement Filter Dryer Filters
32240396801 Frigidaire Refrigerator Tube Clamp
33SLEEVE-CONNECTOR
35CORD, SERVICE
36WIRING HARNESS-COMPR & LIGHTS
37AWCI G189379
37WCI G183584
38WASHER, COMPRESSOR MOUNTING (4)
39WCI 3017762
