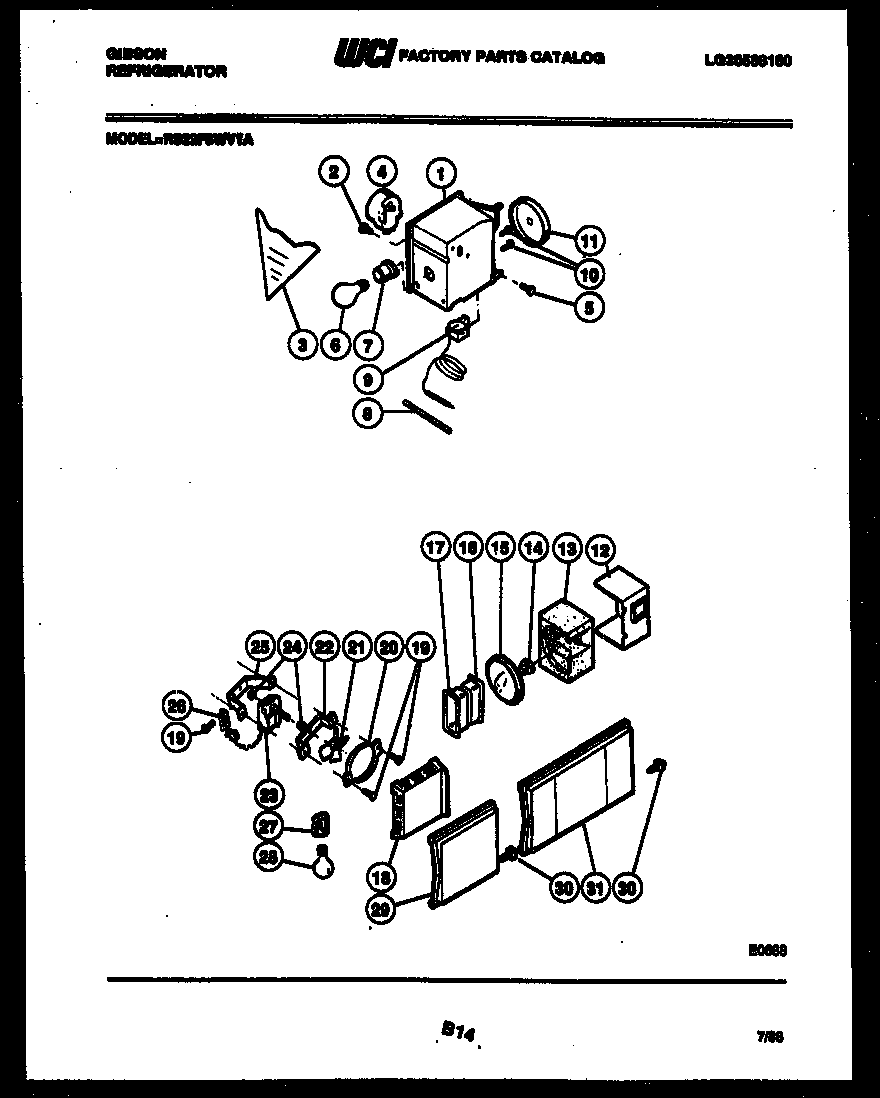

RS22F8WV1A 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1WCI G189359
25304455852 Frigidaire Refrigerator Screw
3WCI G165434
4215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
55304455649 Frigidaire Refrigerator Screw
7SOCKET LIGHT
8TUBE
9WCI G162205-05
10WCI G107080
11WCI G164906-01
11AWIRING HARNESS, CONTROLS
11BWCI G162703
12WCI G164523
13WCI G164575
14WCI G185373
15KNOB, DAMPER CONT.
16WCI G166803
16AWCI G167582
17WCI G166802
18WCI G164654-01
195304455651 Frigidaire Refrigerator Screw
20ANUT, ORIFICE (2)
20RING, FAN ORIFICE
215308000010 Frigidaire Refrigerator Evaporator Fan Blade
22WCI G185302
235300158289 Frigidaire Evaporator Fan Motor
24G187559 Frigidaire Refrigerator Bushing
25WCI G185303
26WCI G164571
27218906802 Frigidaire Light Lamp Socket
28316538904 Frigidaire Oven Lamp Light
29WCI 3200803
30WCI G165177
31WCI 3015073
