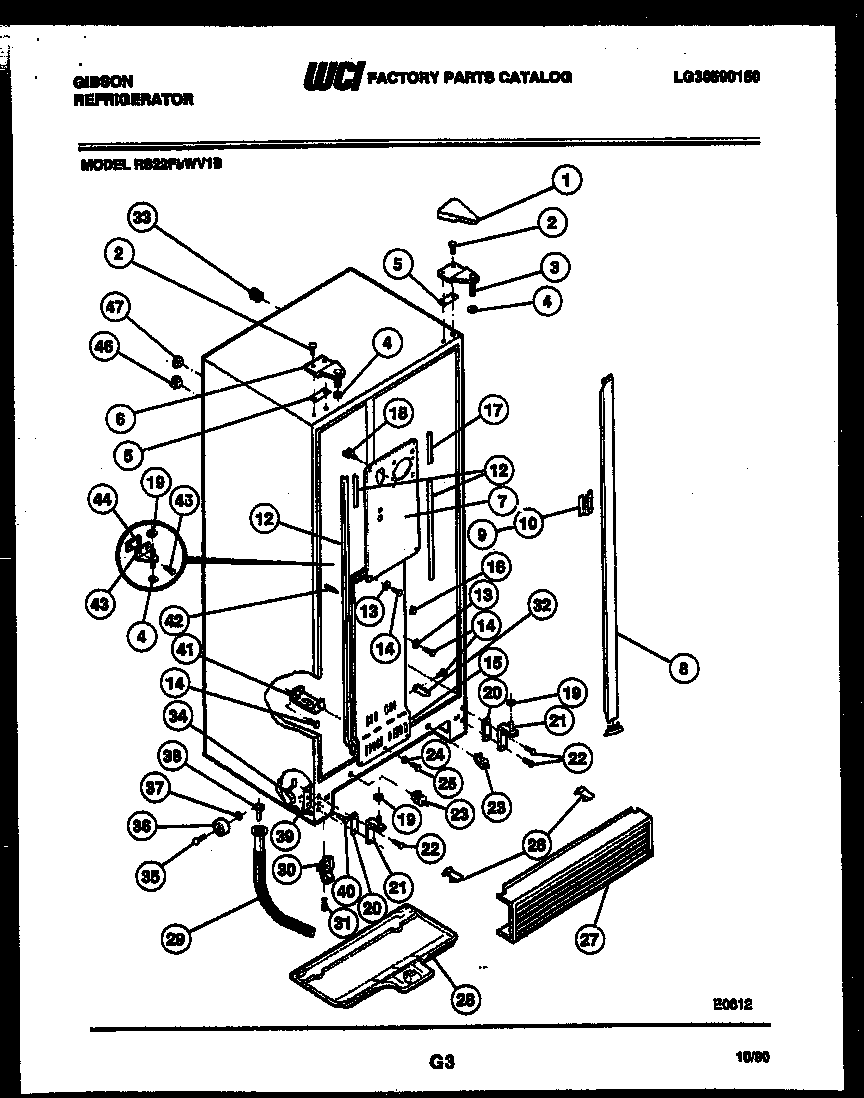

RS22F8WV1B 04 – CABINET PARTS

Products

Position	Product
1	WCI 5303001666
1	COVER – HINGE-WHEAT
1	COVER-HINGE-AVOCADO
1	COVER-UPPER HINGE, WHITE
1	COVER-UPPER HINGE, ALMOND
2	241710601 Frigidaire Refrigerator Screw
3	WCI 5308012934
4	WCI 5308000186
5	SHIM – UPPER HINGE
6	WCI 5303001062
7	WCI 5303006543
8	WCI 5303916444
8	WCI 3916446
8	WCI 5303916448
8	WCI 3916445
8	WCI 5303916447
9	WCI 5300169100
10	WCI 5303001281
12	WCI 5303001233
13	WASHER-NYLON,3/16 X 5/8 OD
14	5304455650 Frigidaire Refrigerator Screw
15	WCI G169477-02
16	WCI 5303001231
17	WCI 5303001219
18	SUPPORT-COIL COVER
19	WASHER, .28 X .62 X .19, NYLON
20	SHIM-BTM HINGE (3)
21	HINGE-BOTTOM
22	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
23	5303289051 Frigidaire Refrigerator Light Switch
24	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
25	WCI 5303001230
26	CLIP, GRILLE (2)
27	WCI 5317032601
28	WCI 5303001026
29	WCI 5303209723
30	ROLLER-FRONT (2)
31A	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
31B	WCI 5303001213
31C	5303208309 Frigidaire Refrigerator Plug Hole
31	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
32	DAMPER, MEAT KEEPER
33	TUBE-RUBBER
34	WCI 5300077210
35	WCI 5308000266
36	WCI 5308000265
37	Nut,push-on
38	WCI 5308000853
39	WCI 5303001273
40	WCI 5308000013
41	WCI 5308000738
42	WCI 5303001250
43	WCI 5300169531
44	WCI 08002788
45	WCI 5308012258
46	WCI 5303001286
47	WCI 5303001287
