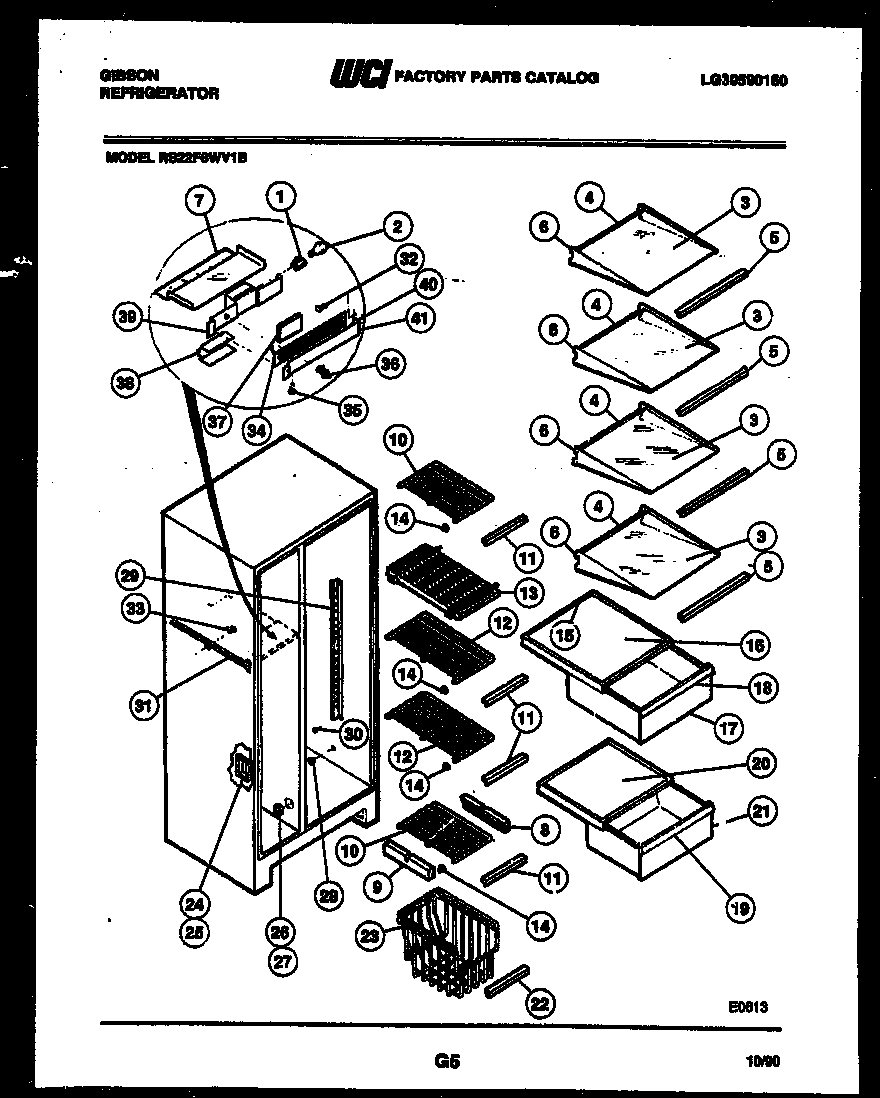

RS22F8WV1B 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	SOCKET-LIGHT/LAMP
2	316538904 Frigidaire Oven Lamp Light
3	WCI 3016880
4	WCI G172409-01
5	TRIM-SHELF
6	WCI G186156-03
7	MOLDING, 3-DOOR THROAT
8	WCI 5303001098
9	WCI 5303001099
10	WCI 5303007123
11	WCI 3016382
12	WCI 5303007122
13	WCI 5308001016
14	5304509705 Frigidaire Refrigerator Grommet
15	GASKET-CRISPER COVER
16	COVER – UPPER PAN
17	WCI G179709-03
18	TRIM, UPPER PAN
19	TRIM, LOWER PAN
20	WCI 5316972401
21	WCI G179710-02
22	WCI 3015108
23	WCI 3017211
24	WCI 5308000808
25	WCI 5308000809
26	WCI 5303001276
27	WCI 5303001277
28	WCI 5303001288
29	CHANNEL-SHELF MTG (2)
30	5304455852 Frigidaire Refrigerator Screw
31	CHANNEL-WIRING
32	WCI 5308012258
33	5304455650 Frigidaire Refrigerator Screw
34	WCI 5300169756
35	SCREW 8-18 X 3/8 (NON-ILLUSTRATED)
36	5303289051 Frigidaire Refrigerator Light Switch
37	WCI G175156
38	WCI G169516
39	STRAP-LIGHT MOUNTING
40	WCI G169530-09
40	WCI G169530-11
40	WCI G169530-10
40	WCI G169530-08
40	WCI G169530-01
41	WCI G169490-08
41	WCI G169490-09
41	WCI G169490-01
41	WCI G169490-11
41	WCI G169490-10
