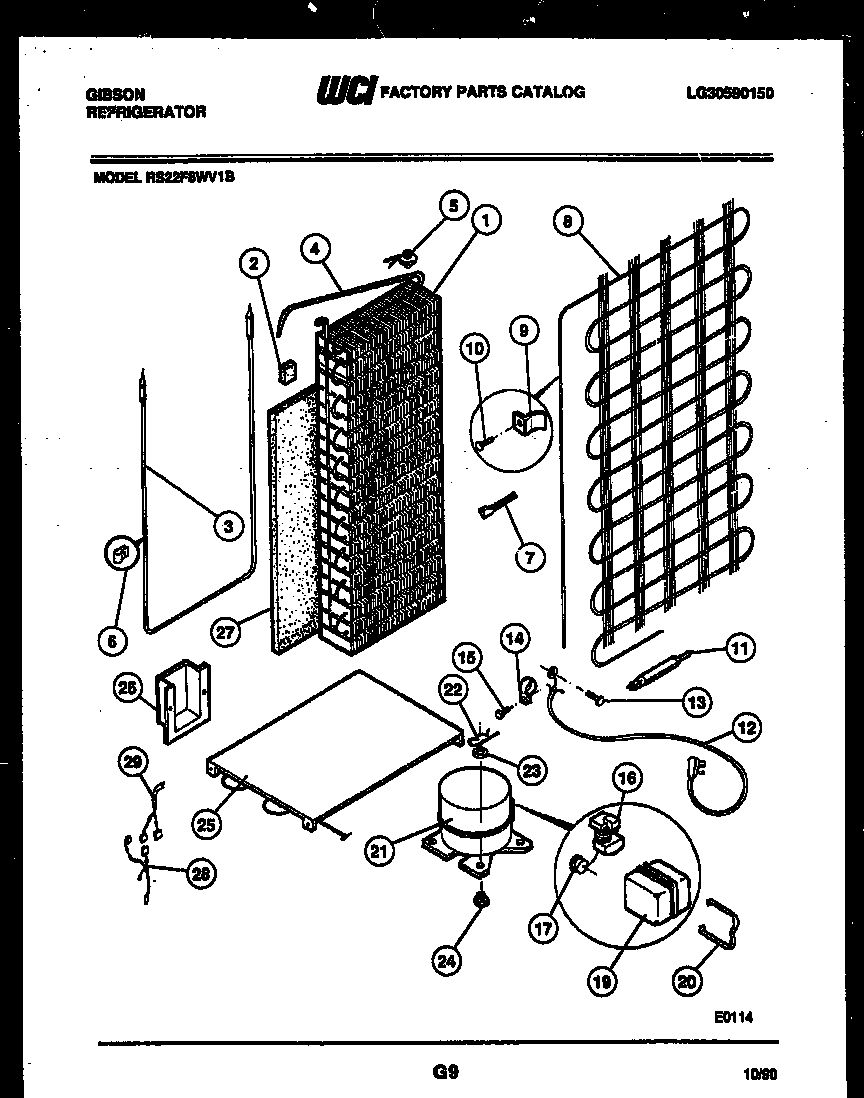

RS22F8WV1B 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*22692	CAPACITOR
*22692	WCI 5300189379
1	WCI 3206421
2	WCI 5308000828
3	WCI 5303007568
4	WCI 5308017565
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI 5308002777
7	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
8	WCI 5303007521
9	BRACKET, MOUNTIN, CONDENSER, (4)
10	5308000039 Frigidaire Refrigerator Screw
11	5303305677 Frigidaire Replacement Filter Dryer Filters
12	CORD-ELECTRIC POWER
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	RELAY-TL
17	5303271616 Frigidaire Refrigerator P1-Overload
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
21	WCI 5308950223
22	CLIP – COMPRESSOR MTG
23	WASHER-COMPR MTG
24	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25B	WCI 5308002780
25A	WCI 5308002782
25	WCI 5308017112
25C	218843801 Frigidaire Refrigerator Screw
26	WCI 5303001197
27	WCI 5303001235
28	WCI 5308009616
29	WIRING HARNESS, CONTROLS
