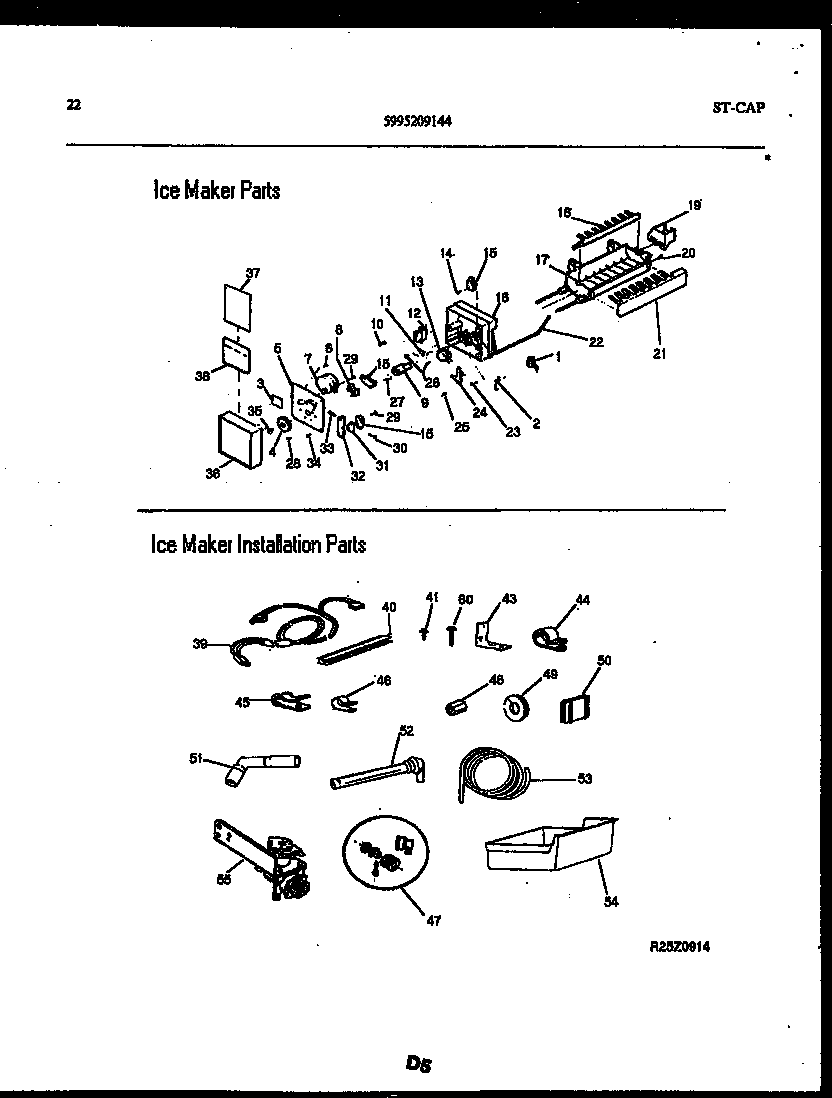

RS22F8WX1B 12 – ICE MAKER AND ICE MAKER INSTALLATIO

Products

PositionProduct
*45293WCI 5303001191
*45293WCI 5308000247
23ACLAMP-TUBE
29ACAPACITOR
33WCI 3206344
34SCREW – MTG PLATE / SPRT, 8-18 X 7/16, (3)
35SCREW – GEAR / CAM, 6-20 X 0.437
36COVER-ICE MAKER
37WCI 5303207442
38WCI 5303207445
39HARNESS-WIRING, ICE MAKER
405305877995 Frigidaire Refrigerator P-1 Sealing Strip
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455846 Frigidaire Refrigerator Clamp
465303001193 Frigidaire Refrigerator Clamp
47ADAPTER-WATER SPLY
48NUT, 7/16 X 20, NYLON
505303001147 Frigidaire Refrigerator Plug-Harness Hole
51EXTENSION-INLET TUBE, S X S & SD ONLY
52215456100 Frigidaire Refrigerator Water Inlet Tube
535308010366 Frigidaire Refrigerator P1-Water Inlet Tube
545303212918 Frigidaire Refrigerator Cont
55ACAP-WATER VALVE (NON-ILLUSTRATED)
55VALVE-WATER
605304455852 Frigidaire Refrigerator Screw
