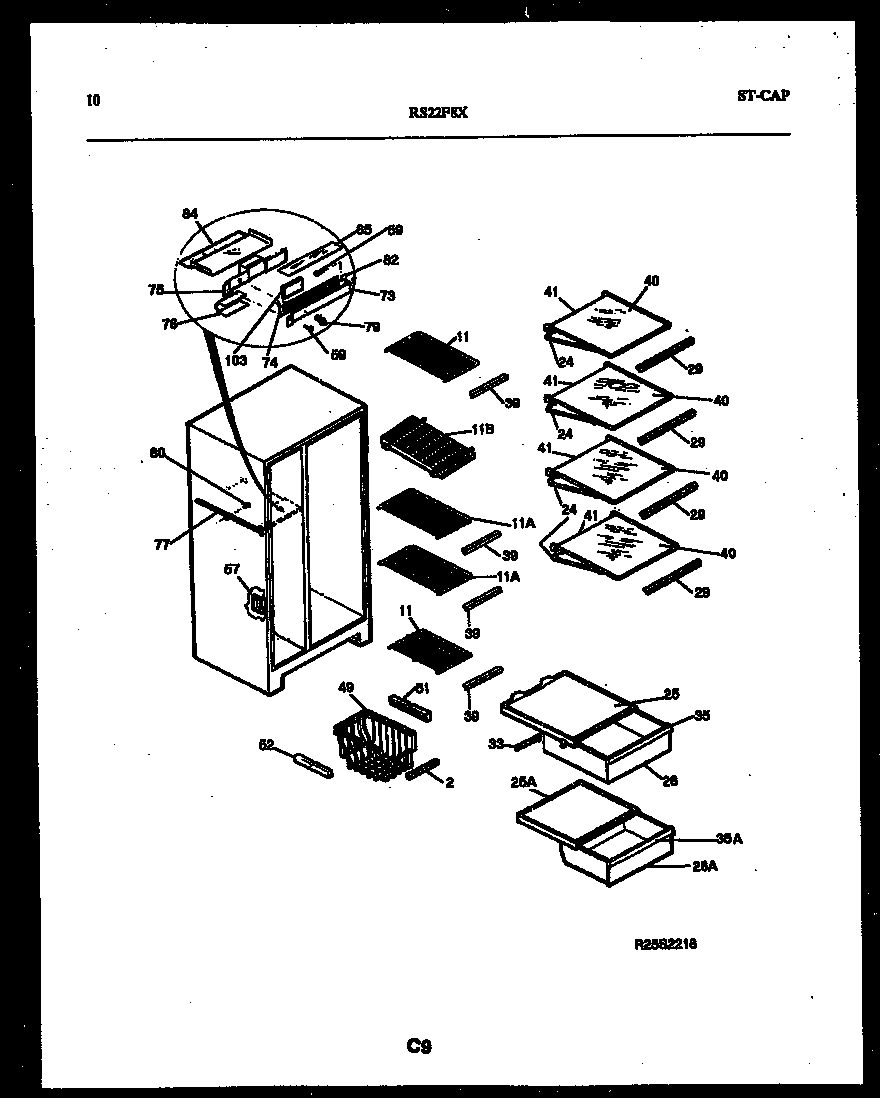

RS22F8WX1C 06 – SHELVES AND SUPPORTS

RS22F8WX1C 06 – SHELVES AND SUPPORTS

Written by

in

RS22F8WX1C 06 – SHELVES AND SUPPORTS

Products

PositionProduct
2WCI 3205569
11AWCI 5303007122
11WCI 5303007123
11BWCI 5308001016
24FRAME-REFR SHELF, CANTILEVER, (3)
25AWCI 5316972401
25COVER-CRISPER PAN, MIDDLE
26WCI 5303275349
26AWCI 5303275350
29ARETAINER-GLASS (3) (NON-ILLUSTRATED)
29WCI 5303275418
33GASKET-CRISPER COVER
35TRIM-CRISPER PAN, RH & LH
35AWCI 5303275339
39WCI 5303275333
40WCI 5303275424
41TRIM-REFR SHELF, SNAP-ON, REAR, (4)
41ALOCK-SHELF TRIM, REAR
49WCI 3017211
51WCI 5303001098
52WCI 5303001099
57WCI 5303271652
57WCI 5303271653
59WCI 5308012258
73WCI 08000826
74WCI 5300176611
75STRAP-LIGHT MOUNTING
76COVER-LIGHT SOCKET
77CHANNEL-WIRING
795303289051 Frigidaire Refrigerator Light Switch
