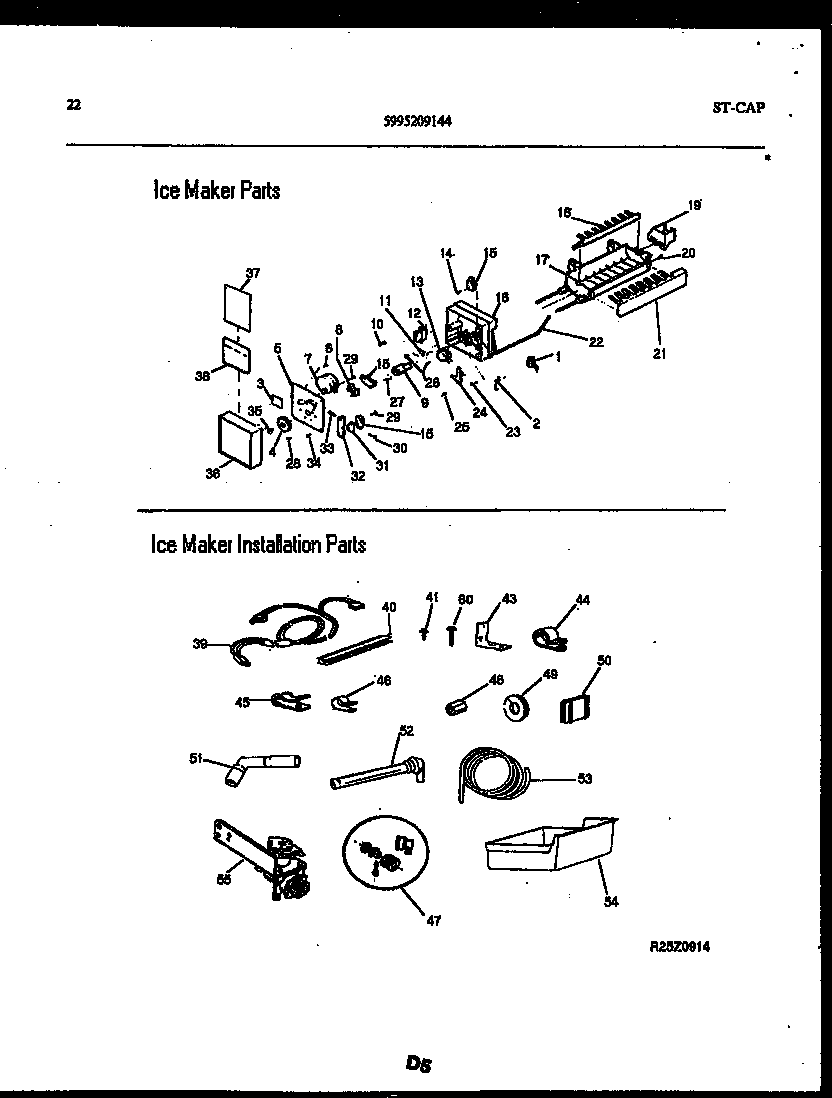

RS22F8YX1A 12 – ICE MAKER AND ICE MAKER INSTALLATIO

Products

Position	Product
*45293	WCI 5303001191
*45293	WCI 5308000247
23A	CLAMP-TUBE
29A	CAPACITOR
33	WCI 3206344
34	SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3)
35	SCREW - GEAR / CAM, 6-20 X 0.437
36	COVER-ICE MAKER
37	WCI 5303207442
38	WCI 5303207445
39	HARNESS-WIRING, ICE MAKER
40	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
45	5304455846 Frigidaire Refrigerator Clamp
46	5303001193 Frigidaire Refrigerator Clamp
47	ADAPTER-WATER SPLY
48	NUT, 7/16 X 20, NYLON
50	5303001147 Frigidaire Refrigerator Plug-Harness Hole
51	EXTENSION-INLET TUBE, S X S & SD ONLY
52	215456100 Frigidaire Refrigerator Water Inlet Tube
53	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
54	5303212918 Frigidaire Refrigerator Cont
55A	CAP-WATER VALVE (NON-ILLUSTRATED)
55	VALVE-WATER
60	5304455852 Frigidaire Refrigerator Screw
