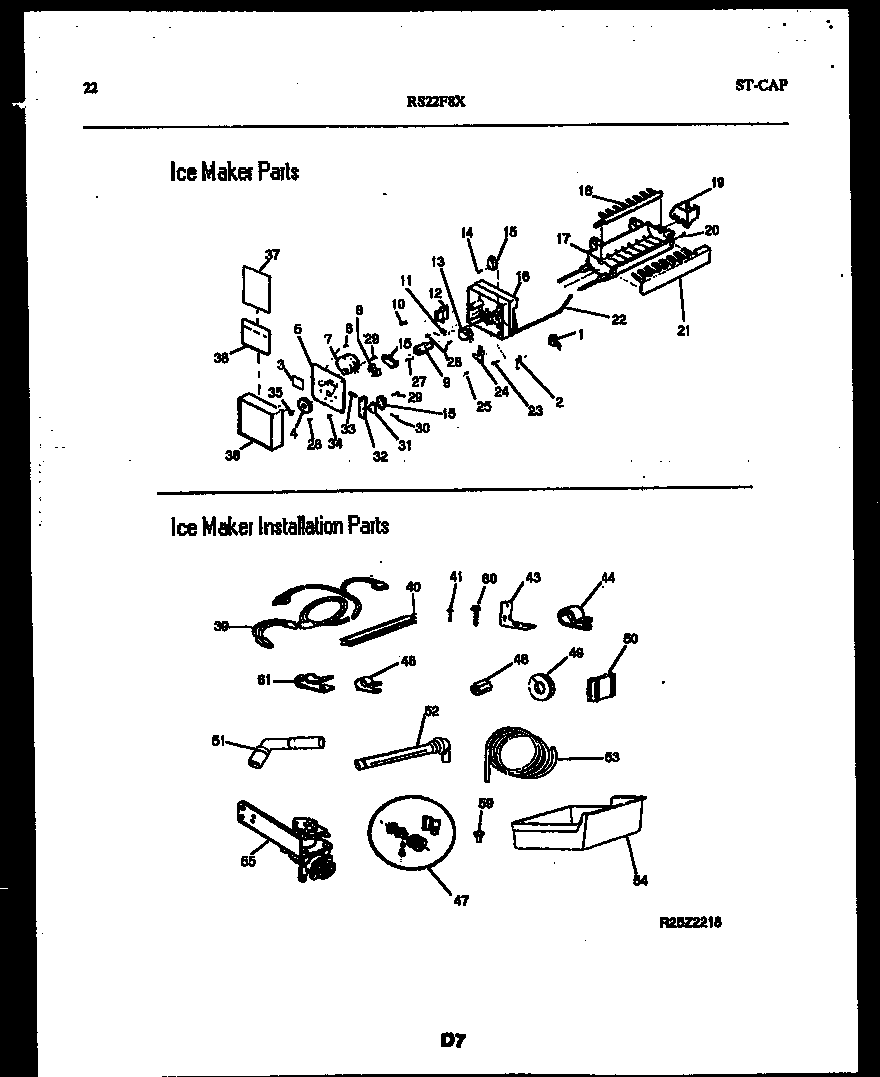

RS22F8YX1C 12 – ICE MAKER AND ICE MAKER INSTALLATIO

Products

Position	Product
*48095	WCI 5308000247
34	SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3)
35	SCREW - GEAR / CAM, 6-20 X 0.437
36	COVER-ICE MAKER
37	WCI 5303207442
38	WCI 5303207445
39	HARNESS-WIRING, ICE MAKER
40	5305877995 Frigidaire Refrigerator P-1 Sealing Strip
41	5308000039 Frigidaire Refrigerator Screw
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
44	5308000133 Frigidaire Refrigerator Clamp
46	5303001193 Frigidaire Refrigerator Clamp
47	ADAPTER-WATER SPLY
48	NUT, 7/16 X 20, NYLON
50	5303001147 Frigidaire Refrigerator Plug-Harness Hole
51	EXTENSION-INLET TUBE, S X S & SD ONLY
52	215456100 Frigidaire Refrigerator Water Inlet Tube
53	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
54	5303212918 Frigidaire Refrigerator Cont
55A	CAP-WATER VALVE (NON-ILLUSTRATED)
55	VALVE-WATER
59	WCI 5303001191
60	5304455852 Frigidaire Refrigerator Screw
61	5304455846 Frigidaire Refrigerator Clamp
