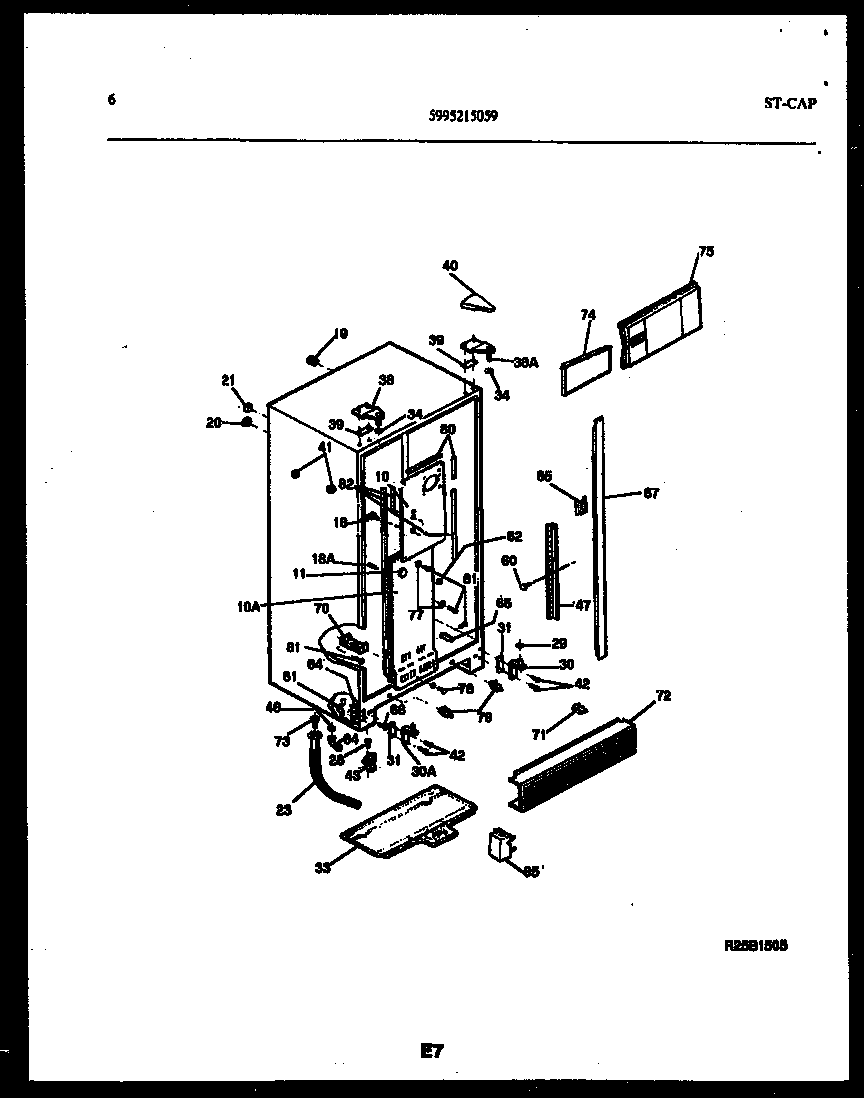

RS22F9DX1C 04 – CABINET PARTS

RS22F9DX1C 04 – CABINET PARTS

Written by

in

RS22F9DX1C 04 – CABINET PARTS

Products

PositionProduct
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10ACOVER-COIL LOWER
10COVER-COIL UPPER
115303208309 Frigidaire Refrigerator Plug Hole
18AWCI 5303001250
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
23WCI 5303209723
28SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
29WASHER, .28 X .62 X .19, NYLON
30BWCI 5308010374
30HINGE-BOTTOM
30AHINGE-BOTTOM LS
31SHIM-BTM HINGE (3)
33WCI 5303001026
34WCI 5308000186
38AWCI 5308012934
38WCI 5303001062
38B241710601 Frigidaire Refrigerator Screw
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40COVER-UPPER HINGE, ALMOND
415304509705 Frigidaire Refrigerator Grommet
42SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43ROLLER-FRONT (2)
47CHANNEL-SHELF MTG (2)
48NUT, 7/16 X 20, NYLON
605304455852 Frigidaire Refrigerator Screw
61WCI 5300077210
