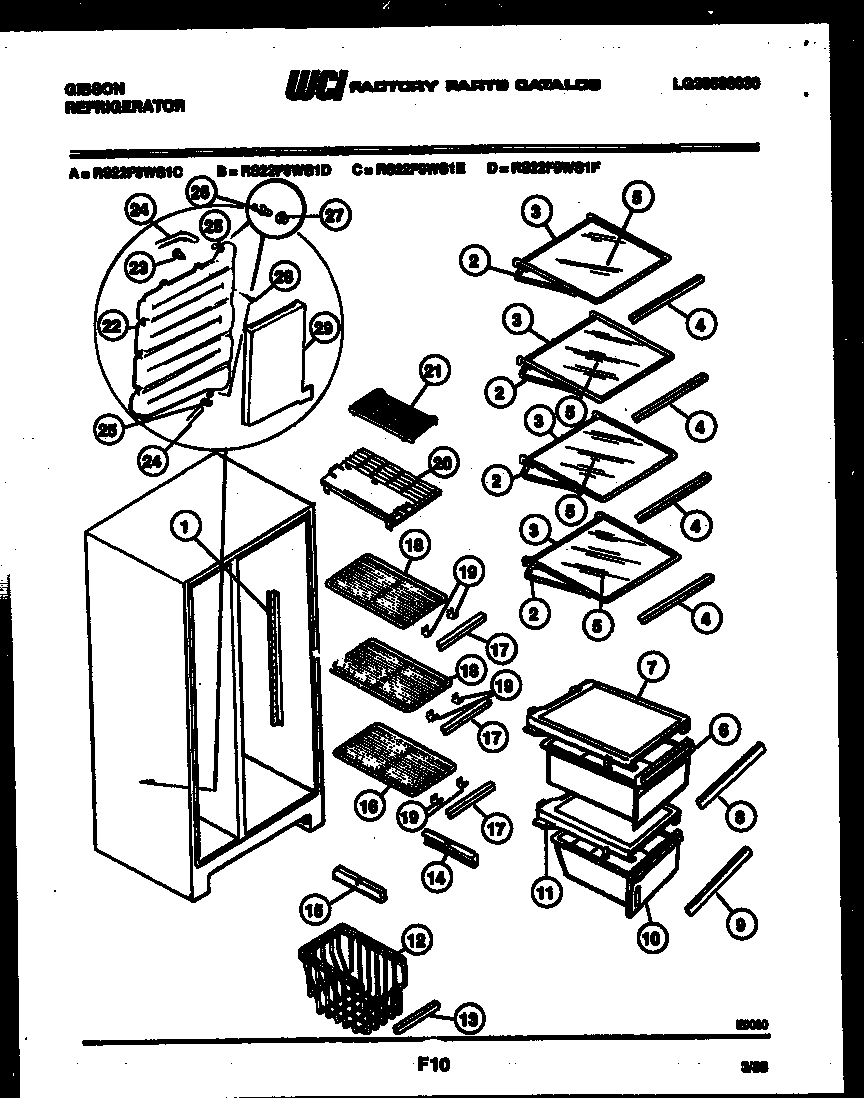

RS22F9WS1C 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	CHANNEL-RS & LS
1A	5304455852 Frigidaire Refrigerator Screw
2	WCI G186156-04
3	WCI G172409-01
4	WCI G172410-01
5	WCI G171654-42
6	WCI G179709-03
7A	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
7	COVER-UPR PAN
8	TRIM, UPPER PAN
9	TRIM, LOWER PAN
10	WCI G179710-02
11	COVER-LWR PAN
12	WCI 3017211
13	WCI 3015108
14	HANGER-BASKET RS
15	HANGER-BASKET LS
16	WCI G169658-06
17	WCI G141727-32
18	WCI G169658-05
19A	5304509705 Frigidaire Refrigerator Grommet
19	CLIP – TRIM (12)
20A	LABEL-SHELF (NON-ILLUSTRATED)
20	SHELF
21A	LABEL-SHELF (NON-ILLUSTRATED)
21	SHELF
22	TANK-WATER
23	WCI G163938
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	WCI G166705
26	WCI G186058
27	WCI G186057
28	131420300 Frigidaire Screw
29	WCI G163925-02
