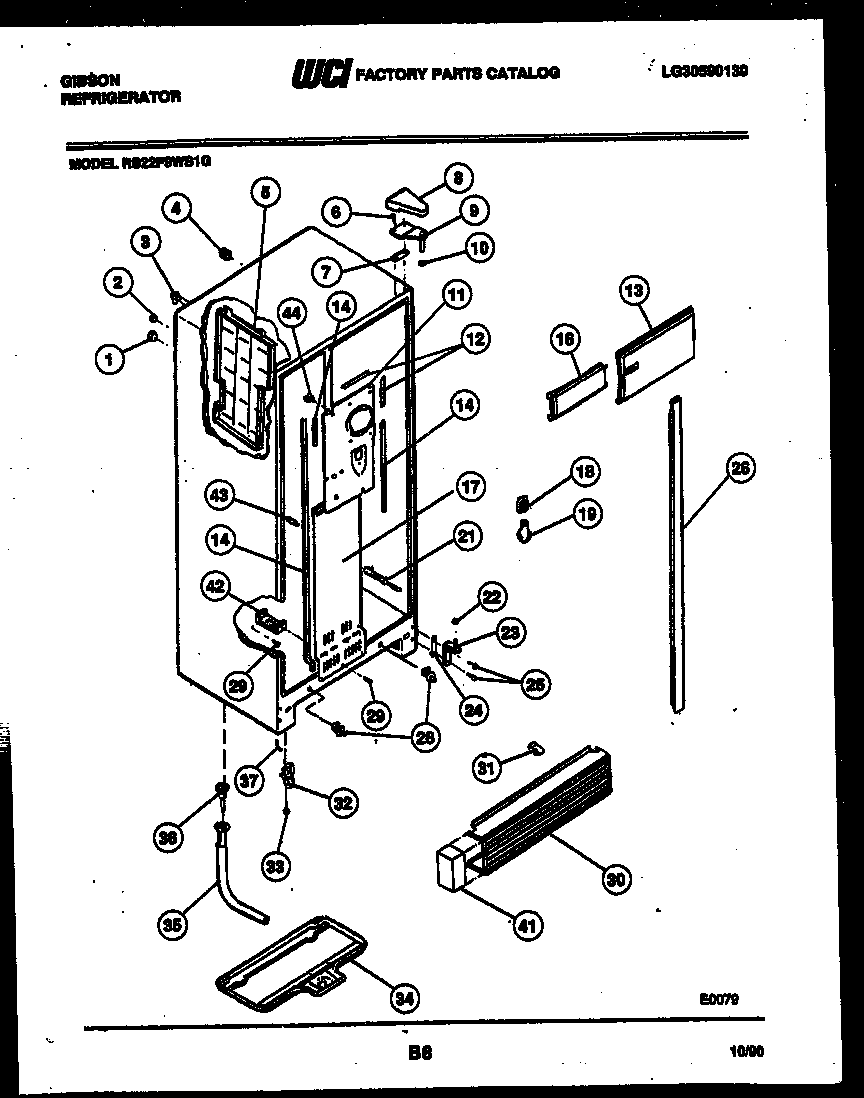

RS22F9WS1G 04 – CABINET PARTS

Products

Position	Product
*30238	WCI 5303001213
*30239	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*30238	WCI 5303001288
1	WCI 5303001286
2	WCI 5303001287
3	215456100 Frigidaire Refrigerator Water Inlet Tube
4	TUBE-RUBBER
5	DIVIDER-ICEMAKER
6	241710601 Frigidaire Refrigerator Screw
7	SHIM – UPPER HINGE
8	WCI 5303001666
8	COVER-HINGE-AVOCADO
8	COVER – HINGE-WHEAT
8	COVER-UPPER HINGE, ALMOND
8	COVER-UPPER HINGE, WHITE
9A	WCI 5303001062
9	WCI 5308012934
10	WCI 5308000186
11	COVER-COIL UPPER
12	WCI 5303001219
13	WCI 3015073
14	WCI 5303001233
16	WCI G182527-01
17	COVER-COIL LOWER
18A	WCI 08015577
18	218906802 Frigidaire Light Lamp Socket
19	316538904 Frigidaire Oven Lamp Light
21	DAMPER, MEAT KEEPER
22	WASHER, .28 X .62 X .19, NYLON
23A	HINGE-BOTTOM LS
23	HINGE-BOTTOM
23B	WCI 5303001273
24A	WCI 5308000013
24B	WCI 5300077210
24	SHIM-BTM HINGE (3)
25	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
26A	WCI 5300169100
26	WCI 5303916448
26	WCI 5303916447
26	WCI 5303916444
26	WCI 3916446
26	WCI 3916445
26B	WCI 5303001281
28	5303289051 Frigidaire Refrigerator Light Switch
29	5304455650 Frigidaire Refrigerator Screw
30	WCI 5317459704
31	CLIP, GRILLE (2)
32A	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
32	ROLLER-FRONT (2)
33	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
34	WCI 5303001026
35	WCI 5303209723
36	WCI 5308000853
37A	NUT, 7/16 X 20, NYLON
37	WCI 5308010289
41	COVER-BOTTOM HINGE
42A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
42B	WCI 5303001230
42	WCI 5308000738
43	WCI 5303001250
44	SUPPORT-COIL COVER
