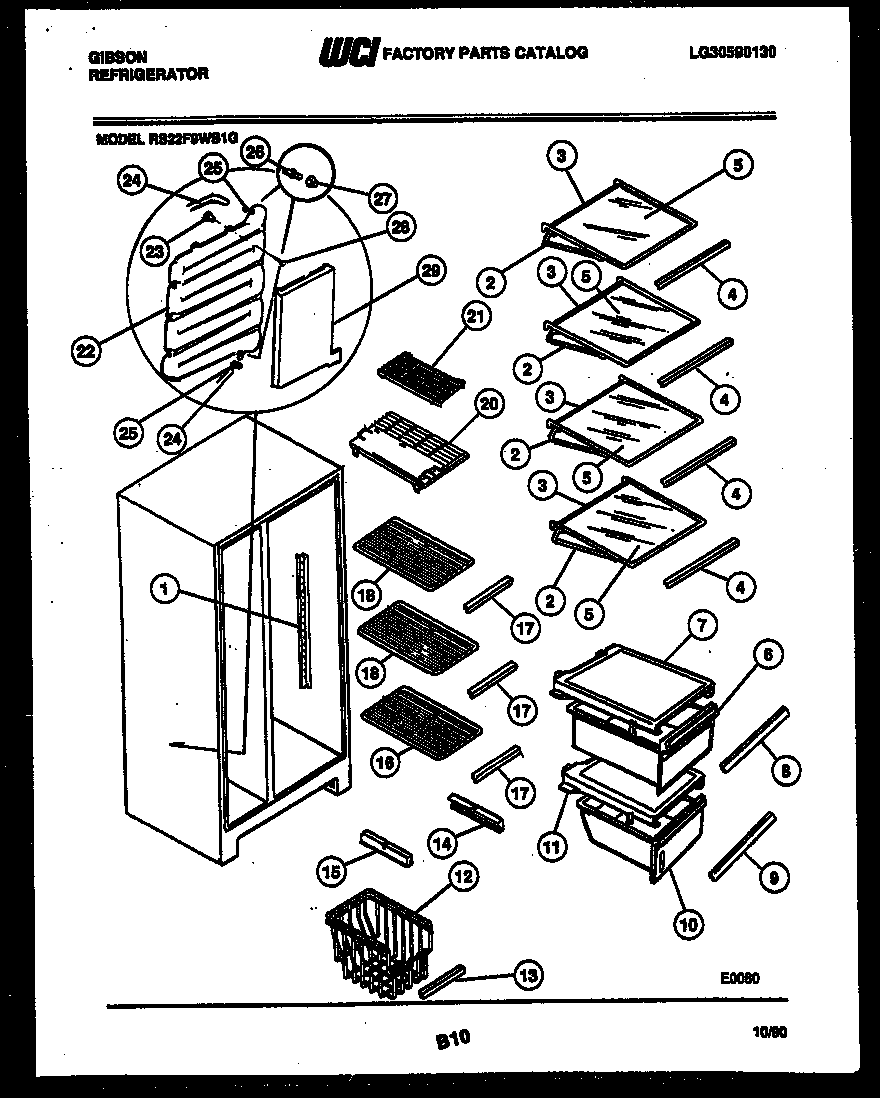

RS22F9WS1G 05 – SHELVES AND SUPPORTS

Products

Position	Product
1A	5304455852 Frigidaire Refrigerator Screw
1	CHANNEL-SHELF MTG (2)
2	FRAME-SHELF (3)
3	WCI 5303211143
4	WCI 5303211142
5	WCI 5303211144
6	WCI G179709-03
7A	GASKET-CRISPER COVER
7	WCI 5316971102
8	TRIM, UPPER PAN
9	TRIM, LOWER PAN
10	WCI G179710-02
11	WCI 5316972401
12	WCI 3017211
13	WCI 3015108
14	WCI 5303001098
15	WCI 5303001099
16	WCI 5303007123
17	WCI 3016382
18	WCI 5303007122
18A	5304509705 Frigidaire Refrigerator Grommet
20A	LABEL-SHELF (NON-ILLUSTRATED)
20	WCI 5308015608
21	WCI 5303017212
22	WATER TANK
23	SUPPORT-TANK (3)
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	CLAMP – TUBE (2)
26	CONNECTOR – TUBE
27	WCI 5308015613
28	131420300 Frigidaire Screw
29	WCI 5308010332
