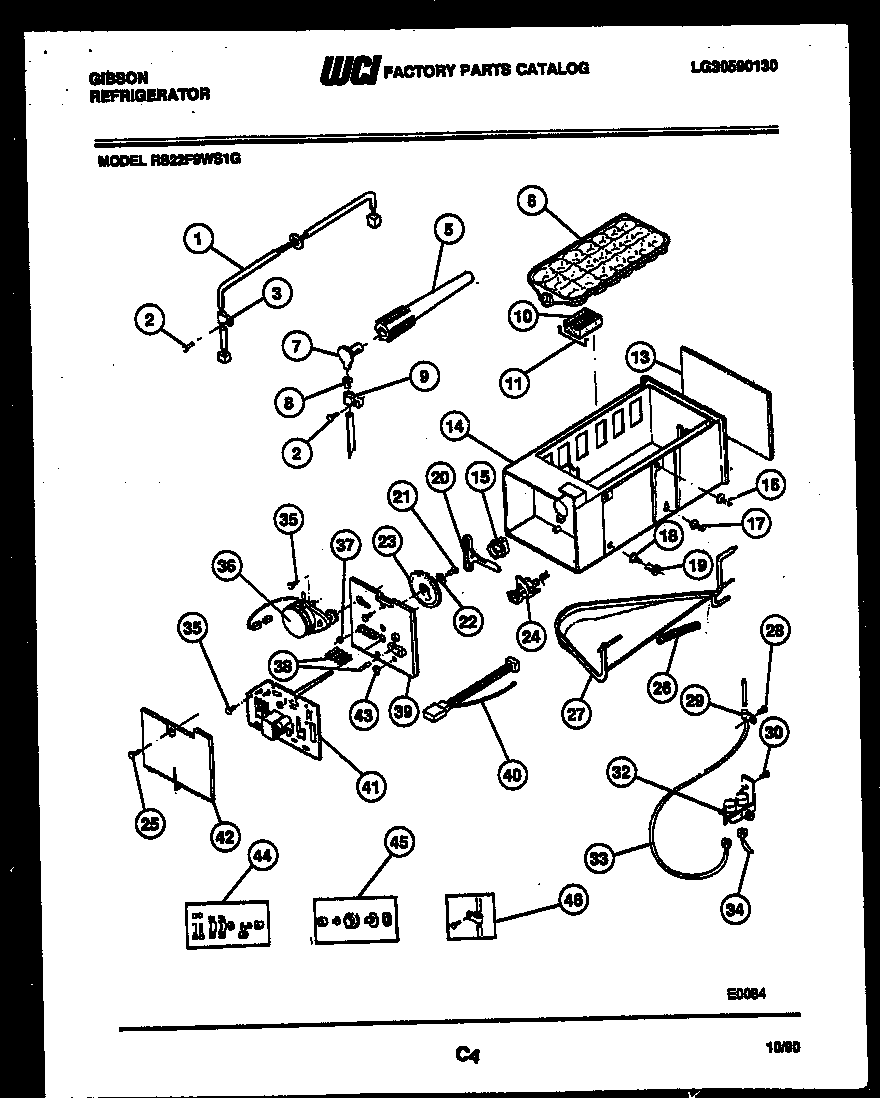

RS22F9WS1G 09 – ICE MAKER AND INSTALLATION PARTS

Products

Position	Product
1	WIRING HARNESS – ICE & WATER
3	CLAMP-TUBE
5	WCI 5308015765
6	WCI 5308015579
7	215456100 Frigidaire Refrigerator Water Inlet Tube
8	WCI 5303001191
9	5303001193 Frigidaire Refrigerator Clamp
10	WCI 5303001141
11	WCI 5301138379
13A	WCI 5303017383
13	WCI 5303017384
13B	WCI 3017385
14	WCI 5308015618
14A	WCI 5303017382
15	WCI 5308015576
16	WCI 5303017391
17	WCI 5300182506
18	WCI 5303017717
19	WCI 5300185464
20	WCI 5308015571
21	WCI 5303001119
22	WCI 5303001117
23	WCI 5301124984
24	WCI 5303017390
25	SCREW (4)
26	WCI 5303017392
27	WCI 5303015044
28	5304455651 Frigidaire Refrigerator Screw
29	5308000133 Frigidaire Refrigerator Clamp
30	5308000039 Frigidaire Refrigerator Screw
32	WATER VALVE SOLENOID
34	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
35	WCI 5308015609
36	WCI 5301124982
37	NUT – HEX 10-32 LH
38	WCI 5308015569
39	WCI 5308015562
40	WCI 5308015592
41	PRINTED CIRCUIT BOARD
42	WCI 5300191470
43	RETAINING RING
44	WCI 5308000247
45	ADAPTER-WATER SPLY
46	5304455846 Frigidaire Refrigerator Clamp
