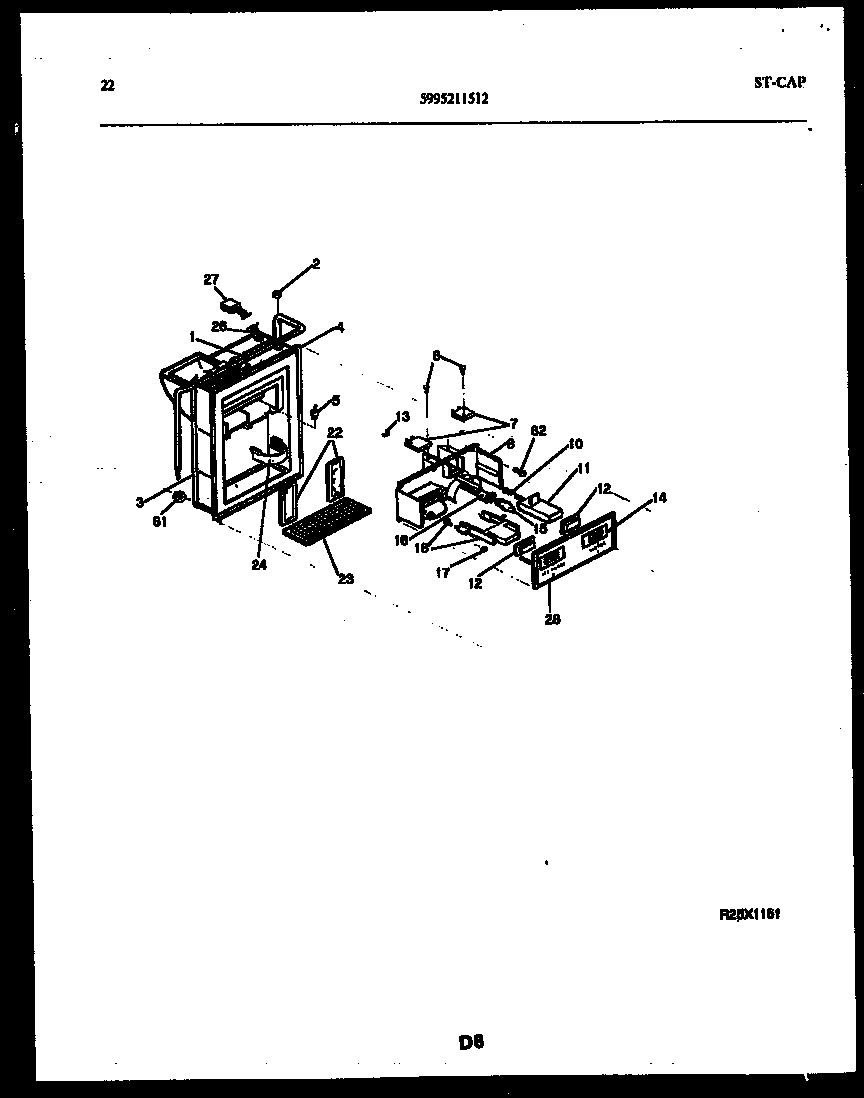

RS22F9WX1B 12 – ICE DOOR, DISPENSER AND WATER TANK

Products

PositionProduct
1TUBE-WATER INLET & PILOT ASSY
2WCI 5303001066
3WCI 5308015588
4HOUSING-FRZR DR PNL
5WCI 5308010326
6SCREW (4)
7WCI 5300185542
8PLATE-SWITCH MTG
10SPRING-WATER ACTUATOR
11WCI 5303001077
12WCI 5303279516
13WCI 5302832214
14WCI 5303276710
15WCI 5304506475
16SOCKET-LIGHT BULB
17WCI 5303001081
18ACTUATOR & CUP ASSY-ICE
22LABEL-FILL PADS, (2)
23WCI 5303015823
24WCI 5318000402
26WCI 5303001082
27PLUG-HARNESS BOTTOM
28WCI 5303279539
61NUT, SELF-THREADING, 1/8
82SCREW (4)
