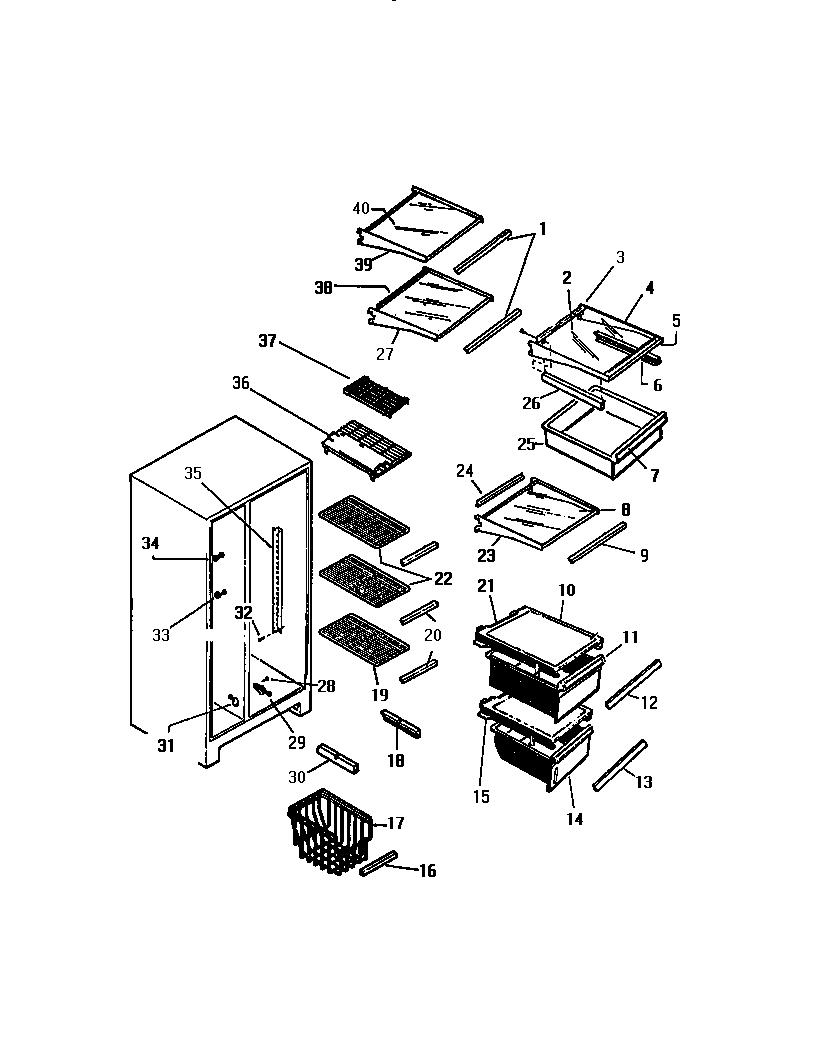

RS249GCD1 05 – SHELVING

Products

Position	Product
*69991	SUPPORT-1“ LONG SCREW, MOUNTED (2)
*69993	SUPPORT
*69992	WCI G165177
*69972	WCI R2001002
*69989	LABEL-SHELF-LOWER (NON-ILLUSTRATED)
*69971	5304509705 Frigidaire Refrigerator Grommet
*69973	HOT TUBE REPAIR KIT
2	WCI G171654-32
4	WCI G178324-04
6	HANGER, RH
10	COVER-PAN UPPER
11	WCI G179709-01
13	WCI G177343-06
14	WCI G179710-01
15	COVER-PAN-LOWER
16	WCI G168625-07
17	BASKET
18	HANGER-BASKET RS
19	SHELF, BOTTOM FREEZER
20	TRIM, SHELF, CUT TO SIZE
21	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
22	SHELF
25	WCI G179915-01
26	HANGER, LH
28	5304455650 Frigidaire Refrigerator Screw
29	WCI G164912-03
30	HANGER-BASKET LS
31B	WCI G167582
31A	WCI G166801
31	WCI G166800
32	5304455852 Frigidaire Refrigerator Screw
33A	SCREW – SUPPORT TO LINER (8)
33	SUPPORT, SHELF (8)
34A	WCI G177636
34	SUPPORT, ICE MAKER (2)
35	CHANNEL-RS & LS
36	WCI G174571-01
37A	LABEL-SHELF-UPPER (NON-ILLUSTRATED)
37	WCI G174556-01
38	TRIM-REAR (NON-ILLUSTRATED)
39	WCI G178323-07
40	WCI G171654-31
