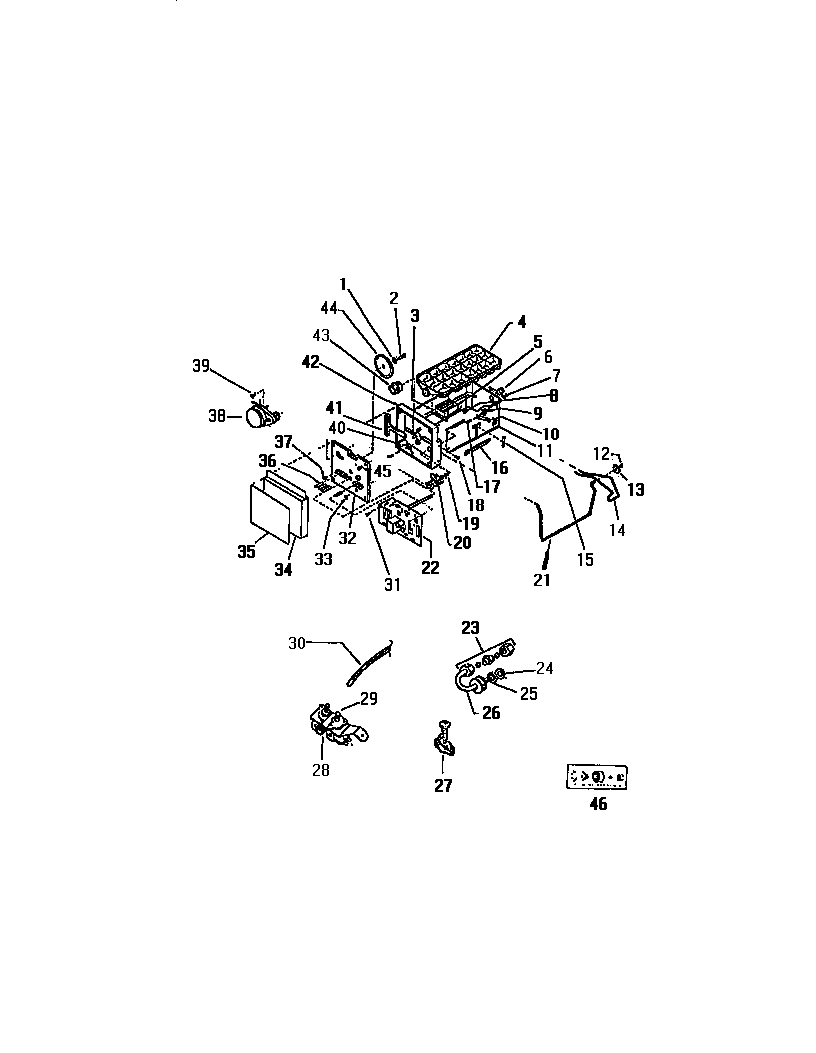

RS249GCD1 10 – ICE MAKER

Products

Position	Product
*69987	GUIDE, ICE MAKER TO DIVIDER
*69988	WCI G158161
1	WASHER-CRANK SHAFT
2	WCI G174444
3	RETAINER, INSULATOR
4	ICE TRAY
5	WCI G174479
6	TRAY-PIVOT (NON-ILLUSTRATED)
7	WCI G174435
8	WCI G174417
9	NUT-PUSH
10	SPRING-TRAY
11	WCI G174440
12	RETAINER RING
13	BEARING-GAUGE ARM
14	WIRE-SHUT OFF
15	WCI G175041
15B	5304455650 Frigidaire Refrigerator Screw
15A	SCREW, CHANNEL MOUNTING (3)
16	WCI G175135
17	WCI G174442
18	WCI G169729
19	WCI G174485
20	WCI G174497
21	SENSING ARM
22	PC BOARD
23	WCI G158163
24	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
25	WCI G121401
27	VALVE
28	VALVE, WATER
29	NUT, INLET TO SOLENOID VALVE
30	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
32	PLATE, MOUNTING
33	CLIP
34	WCI G177709-03
35	WCI G180633
36	CAM FOLLOWER
37	NUT-HEX
38	MOTOR-ICE MAKER
39	SCREW, MOTOR TO PLATE (2)
40	WCI G174432
41	RACK, GEAR
42	HOUSING-ICE MAKER
43	WCI G174492
44	WCI G174484
45	SCREW (4)
46	WCI G159415
