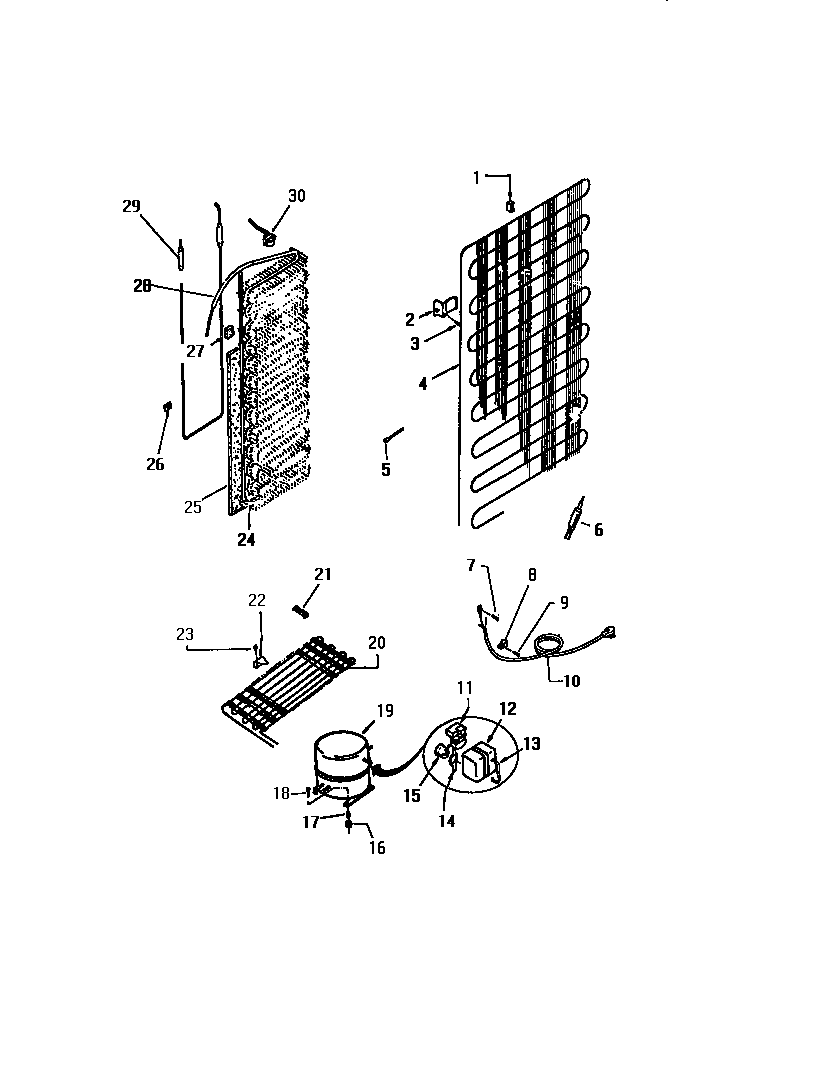

RS249GCD2 09 – SYSTEM & AUTOMATIC DEFROST PARTS

Products

PositionProduct
*69986WCI R900979
*69985HOT TUBE REPAIR KIT
1SUPT. COND. MTG.
1A5304500008 Frigidaire Oven Screw
2BRACKET, COND. MTG (4)
4WCI G169757
55308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
6WCI R900125
6ADRIER-REGULAR
85303001199 Frigidaire Refrigerator Wiring Harness Clamp
95308000039 Frigidaire Refrigerator Screw
10CORD, SERVICE
11WCI G150618-01
12COVER
135303006412 Frigidaire Refrigerator Cover Mounting Strap
14RETAINER
15WCI G152989
16218513300 Frigidaire Refrigerator Compressor Mount Grommet
17SLEEVE COMP MTG (3)
18WCI G154589
19WCI C620104
20WCI G171126
21WCI G171111
22BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
23218843801 Frigidaire Refrigerator Screw
24EVAPORATOR
25WCI G169641
26WCI G167363
27WCI G169493
28CAP AND SUCTION LINE ASSEMBLY
29WCI G175351
305303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
