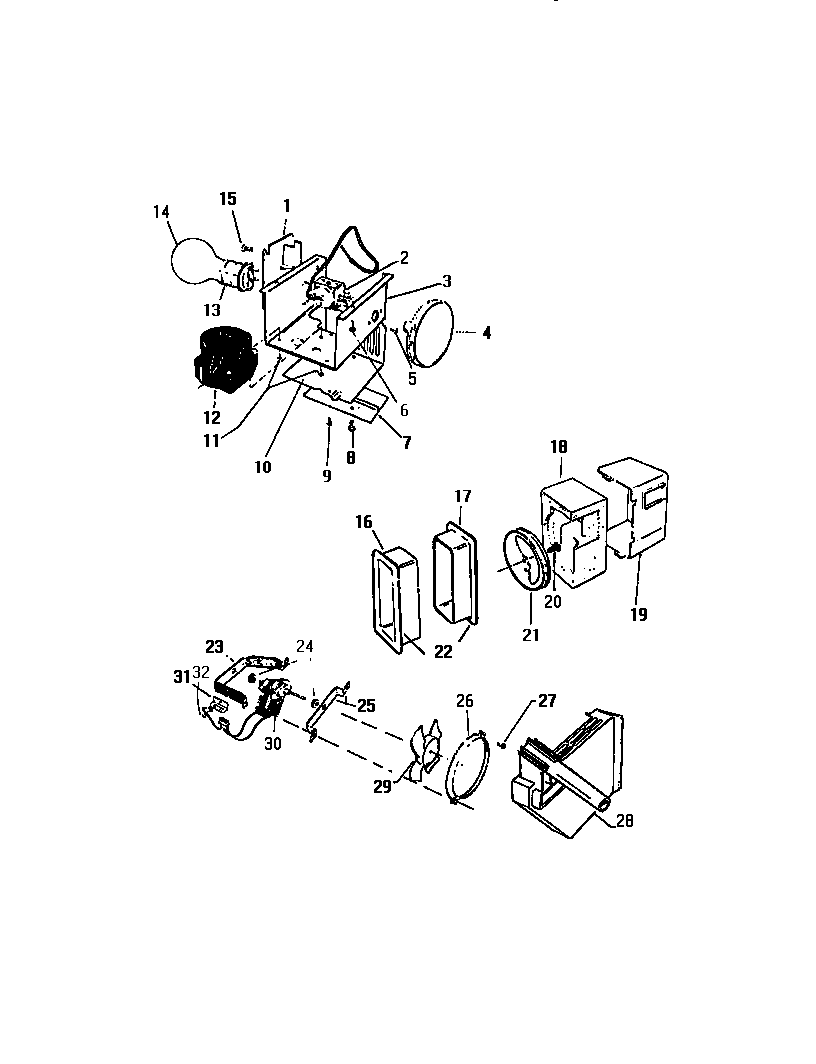

RS249GCD3 07 – REFRIGERATOR, DAMPER CONTROLS & FRE

Products

Position	Product
*69980	WCI G162703
1	WCI G165543
2	WCI G162667-07
3	WCI G164788
4	WCI G164906-01
6	5304455852 Frigidaire Refrigerator Screw
7	WCI G166068
9	5308000039 Frigidaire Refrigerator Screw
10	COVER CONT. BRACKET
11	WCI G107080
12	WCI G15829
13	WCI G157160
14	WCI Q63749
15	WCI G165545
16	WCI G166802
17	WCI G166803
18	WCI G164575
19	WCI G164523
20	WCI G158261
21	KNOB, DAMPER CONT.
22	WCI G167582
23	BRACKET, REAR MOTOR MOUNTING
24	G187559 Frigidaire Refrigerator Bushing
25	BRACKET, FRONT MOTOR MOUNTING
26	RING, FAN ORIFICE
27	5304455650 Frigidaire Refrigerator Screw
28	WCI R900978
29	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
30	5300158289 Frigidaire Evaporator Fan Motor
31	WCI G164571
32	WCI G136150
