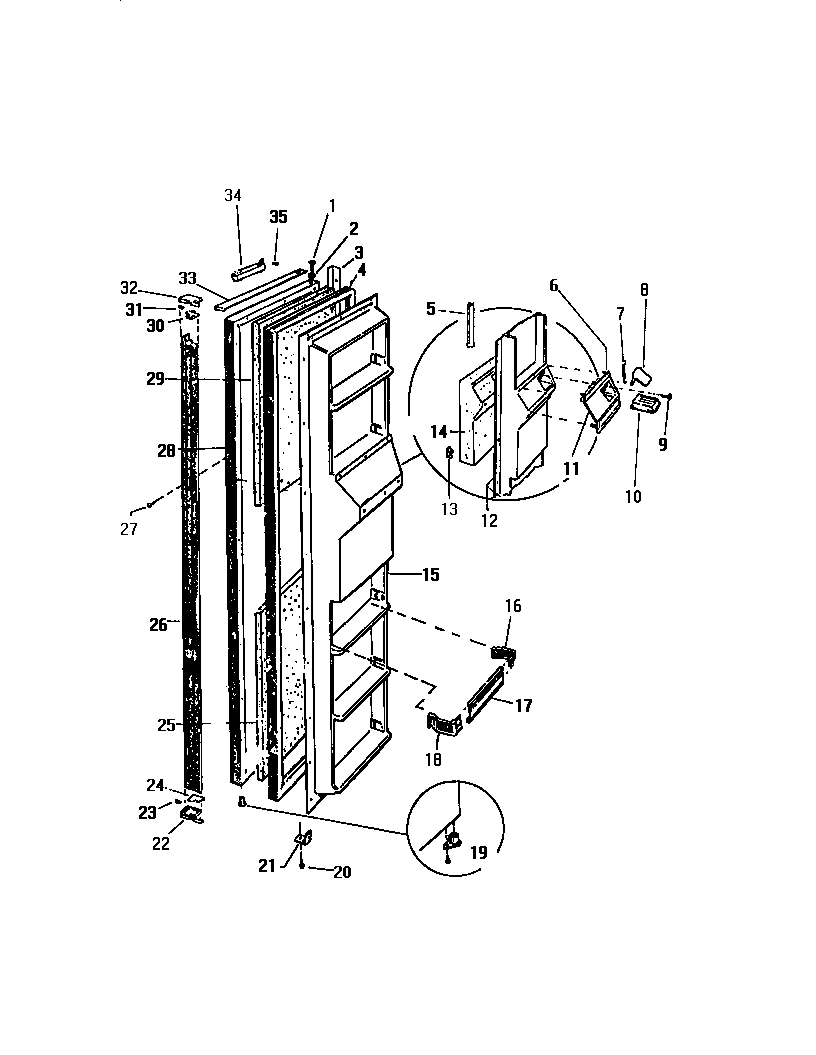

RS249GCF3 02 – FREEZER DOOR

Products

Position	Product
*69962	WCI G152308-01
*69960	TAPE, DBLE SIDE
*69961	WCI CR34X
1	WCI G183139
1A	BEARING, HINGE (3)
2	RING
3	WCI G180613-01
4	WCI G180551-06
5	WCI G177720
6	WCI G179017
7	SPRING-FLIPPER
8	WCI G175040-03
8A	WCI G177742
9	5304455650 Frigidaire Refrigerator Screw
10	WCI G180637
11	WCI G174402-01
12	INSULATION, SIDES
13	RETAINER
13A	NUT, SPEED (2)
14	WCI G174707
15	WCI G180629-01
16	WCI G179946-1
17	FRONT
18	SUPPORT-LS (5)
19	BUSHING-LWR HINGE
21	BUMPER-LIGHT SW.
22	CAP
24	TRIM, BTM
25	INSULATION LOWER
26	WCI G177141-09
26A	WCI R900621
27	WCI R901097
28	WCI R900907
29	INSULATION, UPPER
30	TRIM, TOP
31	CLIP
32	CAP
33	WCI G178328-05
34	DOOR CLOSER
35	218843801 Frigidaire Refrigerator Screw
