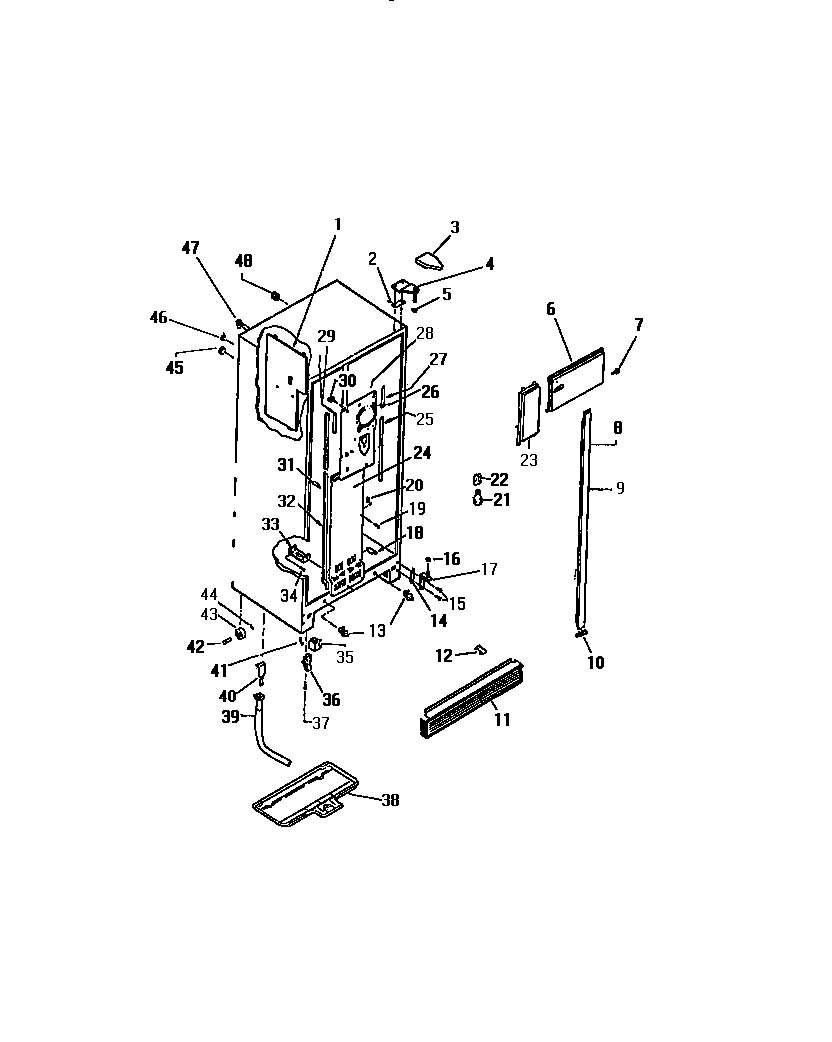

RS249GCH3 04 – CABINET

Products

Position	Product
*69965	BUTTON, PLUG, LINER (2)
*69970	FERRULE, INNER
*69966	FERRULE, OUTER
*69967	WCI G166800
*69968	WCI G166801
*69990	WCI G167582
1A	SUPPORT
1	WCI G174559
2	WCI G183861
3	COVER HINGE, WHEAT
4	HINGE-TOP RS
4A	WCI G183716
4B	241710601 Frigidaire Refrigerator Screw
5	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6	WCI G169601-13
7	WCI G165177
8	WCI G164643-09
9	WCI G169100
9A	WCI G169297
10	WCI G169745-09
11	WCI G174597-01
12	CLIP, GRILLE
13	5303289051 Frigidaire Refrigerator Light Switch
14	SHIM, HINGE
15	SCREW – 1/4 X 1 (2)
16	WASHER, NYLON
17D	NUT, SPEED (2)
17C	WCI G142361
17B	WCI G141673
17	BRACKET-LOWER HINGE
17A	HINGE-BOTTOM LS (NON-ILLUSTRATED)
18	WCI G164912-03
19	216858001 Frigidaire Refrigerator Screw
20	WCI G162703
21	WCI Q63749
22	218906802 Frigidaire Light Lamp Socket
23	WCI G174712-03
24	COIL COVER-LOWER
25	GASKET-COVER LS
26	NUT, ORIFICE (2)
27	WCI G165233
28	WCI G174738
29	WCI G174234-09
30	WCI G163669
31	WCI G169471
32	GASKET KIT – COIL COVER
33	WCI G158022
34	5304455650 Frigidaire Refrigerator Screw
35B	WCI G175076
35	COVER-BOTTOM HINGE
36	WCI R2001003
37	BOLT, HOUSING TO FRONT RAIL (2)
38	WCI G171125
39	241957901 Frigidaire Refrigerator Tube-Drain
40	WCI G171193
41	WCI G177743
41A	NUT, INLET TO SOLENOID VALVE
42	WCI G162809
43	ROLLER (2)
44	NUT, DAMPER MOUNTING
45	WCI G174733
46	WCI G174734
47B	WCI G175439
47A	5303001193 Frigidaire Refrigerator Clamp
47	215456100 Frigidaire Refrigerator Water Inlet Tube
48	TUBE, INSULATION (2)
