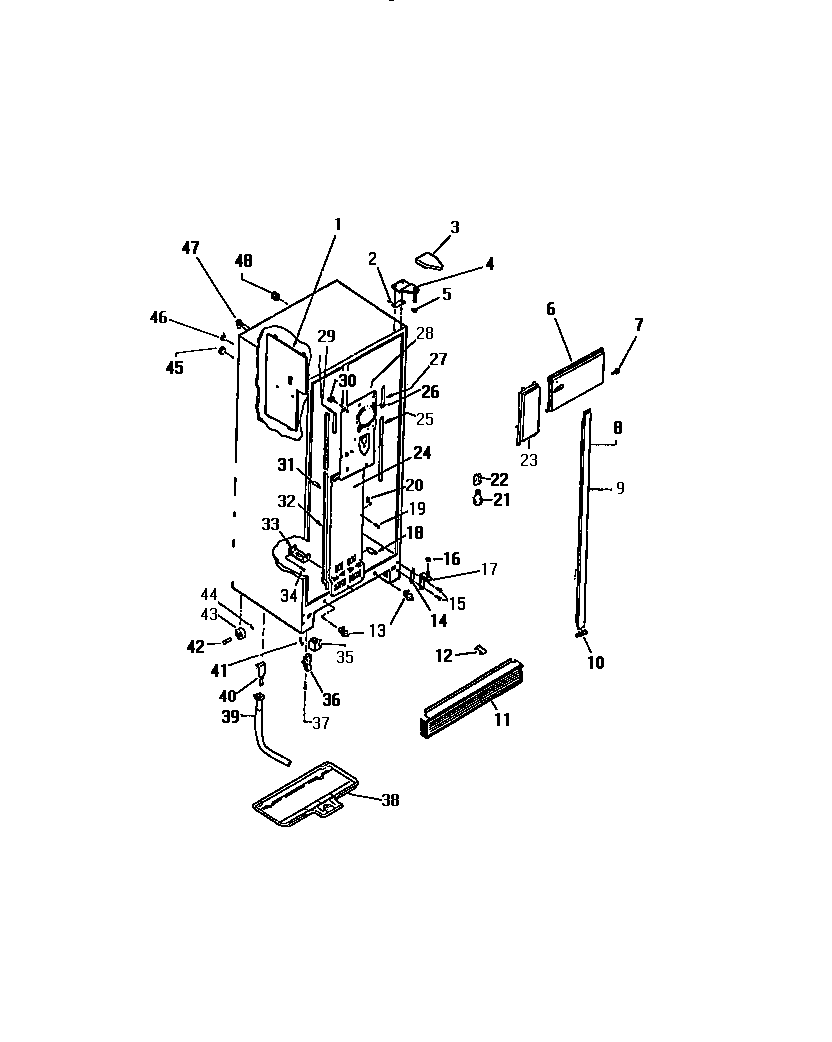

RS249GCW1 04 – CABINET

Products

PositionProduct
*69970FERRULE, INNER
*69990WCI G167582
*69966FERRULE, OUTER
*69968WCI G166801
*69965BUTTON, PLUG, LINER (2)
*69967WCI G166800
1WCI G174559
1ASUPPORT
2WCI G183861
3COVER HINGE, WHITE
4HINGE-TOP RS
4B241710601 Frigidaire Refrigerator Screw
4AWCI G183716
5WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
6WCI G169601-13
7WCI G165177
8WCI G164643-01
9WCI G169100
9AWCI G169297
10MULLION TRIM-WHITE
11WCI G174597-01
12CLIP, GRILLE
135303289051 Frigidaire Refrigerator Light Switch
14SHIM, HINGE
15SCREW – 1/4 X 1 (2)
16WASHER, NYLON
17DNUT, SPEED (2)
17CWCI G142361
17BWCI G141673
17BRACKET-LOWER HINGE
17AHINGE-BOTTOM LS (NON-ILLUSTRATED)
18WCI G164912-03
19216858001 Frigidaire Refrigerator Screw
20WCI G162703
21WCI Q63749
22218906802 Frigidaire Light Lamp Socket
23WCI G174712-03
24COIL COVER-LOWER
25GASKET-COVER LS
26NUT, ORIFICE (2)
27WCI G165233
28WCI G174738
29WCI G174234-09
30WCI G163669
31WCI G169471
32GASKET KIT – COIL COVER
33WCI G158022
345304455650 Frigidaire Refrigerator Screw
35BWCI G175076
35COVER-BOTTOM HINGE
36WCI R2001003
37BOLT, HOUSING TO FRONT RAIL (2)
38WCI G171125
39241957901 Frigidaire Refrigerator Tube-Drain
40WCI G171193
41ANUT, INLET TO SOLENOID VALVE
41WCI G177743
42WCI G162809
43ROLLER (2)
44NUT, DAMPER MOUNTING
45WCI G174733
46WCI G174734
47215456100 Frigidaire Refrigerator Water Inlet Tube
47A5303001193 Frigidaire Refrigerator Clamp
47BWCI G175439
48TUBE, INSULATION (2)
