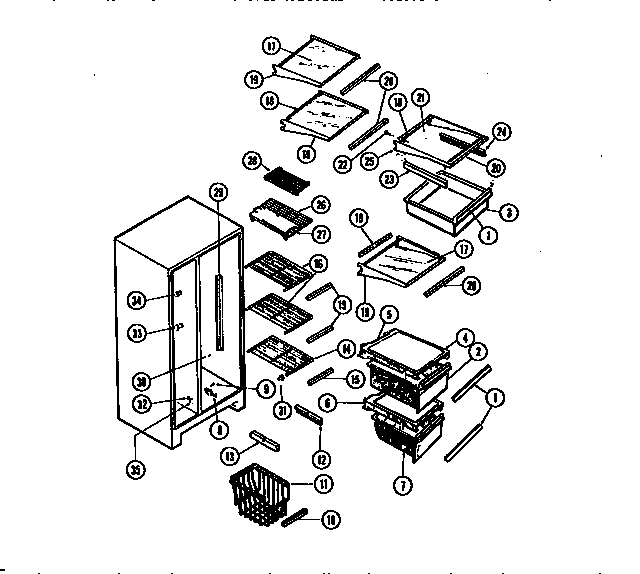

RS249JCD0 05 – SHELVES AND SUPPORTS

Products

Position	Product
1	WCI G177343-06
2	WCI G179709-01
3	WCI G179915-01
4	COVER-PAN UPPER
5	GASKET-COVER UPR (2) (NON-ILLUSTRATED)
6	COVER-PAN-LOWER
7	WCI G179710-01
8	WCI G164912-03
9	5304455650 Frigidaire Refrigerator Screw
10	WCI G168625-07
11	BASKET
12	HANGER-BASKET RS
13	WCI G186987
14	SHELF, BOTTOM FREEZER
15	WCI G187267-15
16	WCI G180426-06
17	WCI G171654-31
18	TRIM-REAR (NON-ILLUSTRATED)
19	WCI G178323-07
20	WCI G187267-13
21	WCI G171654-32
22	SCREW-HANGER (2) (NON-ILLUSTRATED)
23	HANGER, LH
24	HANGER, RH
25	WCI G187217-03
26	WCI G174571-01
27	LABEL-SHELF-LOWER (NON-ILLUSTRATED)
28	WCI G174556-01
28A	LABEL-SHELF-UPPER (NON-ILLUSTRATED)
29	CHANNEL-RS & LS
30	5304455852 Frigidaire Refrigerator Screw
31	5304509705 Frigidaire Refrigerator Grommet
32	WCI G163952
33A	SCREW - SUPPORT TO LINER (8)
33	SUPPORT, SHELF (8)
34	SUPPORT, ICE MAKER (2)
34A	WCI G177636
35B	WCI G167582
35	WCI G166800
35A	WCI G166801
35C	BUTTON, PLUG, LINER (2)
