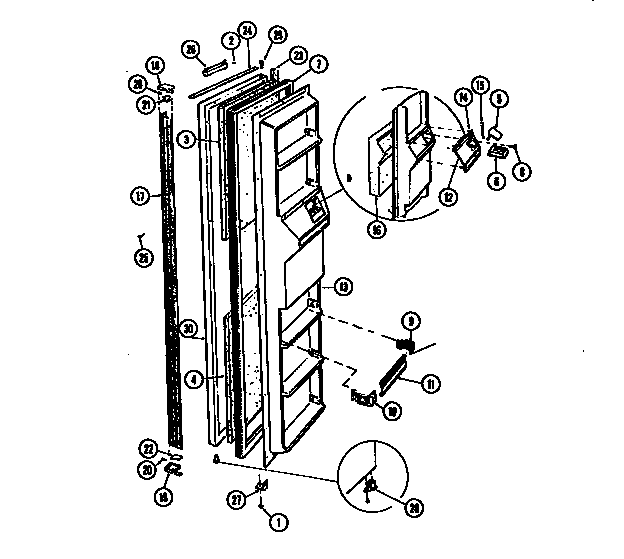

RS249JCD1 02 – DOOR PARTS

Products

Position	Product
*17023	WCI G152308-01
*17022	TUBE-WATER INLET AND PILOT ASSY
*17023	WCI G185266
1	WCI G169729
3	INSULATION, UPPER
4	INSULATION LOWER
5	WCI G175040-03
6	WCI G180637
6A	WCI G179017
7	WCI G180551-06
8	5304455650 Frigidaire Refrigerator Screw
9	SUPPORT-RS (5)
10	SUPPORT-LS (5)
11	FRONT
12	WCI G174402-01
13A	218843801 Frigidaire Refrigerator Screw
13	WCI G180629-01
14	PUSH NUT (6) (NON-ILLUSTRATED)
15	SPRING-FLIPPER
16	WCI G187880
17	WCI G177141-09
18	CAP
19	CAP
20	CLIP
21	TRIM, TOP
22	TRIM, BTM
23	WCI G180613-01
24	WCI G178328-05
25	WCI G185566
26	DOOR CLOSER
27	BUMPER-LIGHT SW.
28	BUSHING-LWR HINGE
29	WCI G183139
30	WCI 467B376A05
