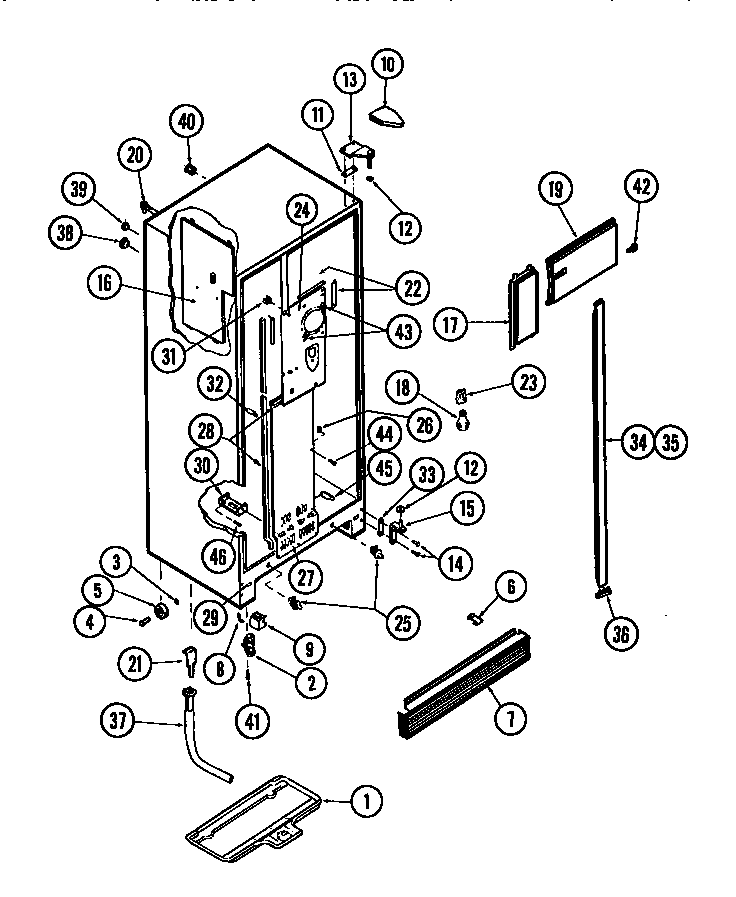

RS249JCD1 04 – CABINET PARTSadmin2025-04-26T08:43:54+00:00RS249JCD1 04 – CABINET PARTS
Products
| Position | Product |
|---|
| *17085 | SUPPORT |
| 1 | WCI G171125 |
| 2 | ROLLER ASSY (2) |
| 3 | NUT, DAMPER MOUNTING |
| 4 | WCI G162809 |
| 5 | ROLLER (2) |
| 6 | CLIP, GRILLE |
| 7 | WCI G174597-01 |
| 8A | NUT, INLET TO SOLENOID VALVE |
| 8 | WCI G177743 |
| 9 | COVER-BOTTOM HINGE |
| 10 | COVER, TOP HINGE, ALMOND |
| 11 | WCI G183861 |
| 12 | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 13 | HINGE-TOP RS |
| 13B | 241710601 Frigidaire Refrigerator Screw |
| 13A | WCI G183716 |
| 14 | SCREW - 1/4 X 1 (2) |
| 15B | WCI G141673 |
| 15D | WCI G142361 |
| 15C | NUT, SPEED (2) |
| 15 | BRACKET-LOWER HINGE |
| 15A | HINGE-BOTTOM LS (NON-ILLUSTRATED) |
| 16 | WCI G174559 |
| 17 | WCI G174712-03 |
| 18 | WCI Q63749 |
| 19 | WCI G169601-13 |
| 20 | WCI G154156 |
| 20 | 215456100 Frigidaire Refrigerator Water Inlet Tube |
| 21 | WCI G171193 |
| 22 | WCI G165233 |
| 23 | 218906802 Frigidaire Light Lamp Socket |
| 24 | WCI G174738 |
| 25 | 5303289051 Frigidaire Refrigerator Light Switch |
| 26 | WCI G162703 |
| 27 | WCI G169477-03 |
| 28 | GASKET KIT - COIL COVER |
| 29 | WCI G177635 |
| 30 | WCI G185022 |
| 31 | WCI G163669 |
| 32 | WCI G169471 |
| 33 | SHIM, HINGE |
| 34 | MULLION-ALMD |
| 35 | WCI G169297 |
| 35A | WCI G169100 |
| 36 | TRIM-MULLN-ALMD |
| 37 | 241957901 Frigidaire Refrigerator Tube-Drain |
| 38 | WCI G174733 |
| 39 | WCI G174734 |
| 40 | TUBE, INSULATION (2) |
| 41 | BOLT, HOUSING TO FRONT RAIL (2) |
| 43 | WCI G165177 |
| 44 | 216858001 Frigidaire Refrigerator Screw |
| 44A | WCI G170839 |
| 45 | WCI G164912-03 |
| 46 | 5304455650 Frigidaire Refrigerator Screw |
