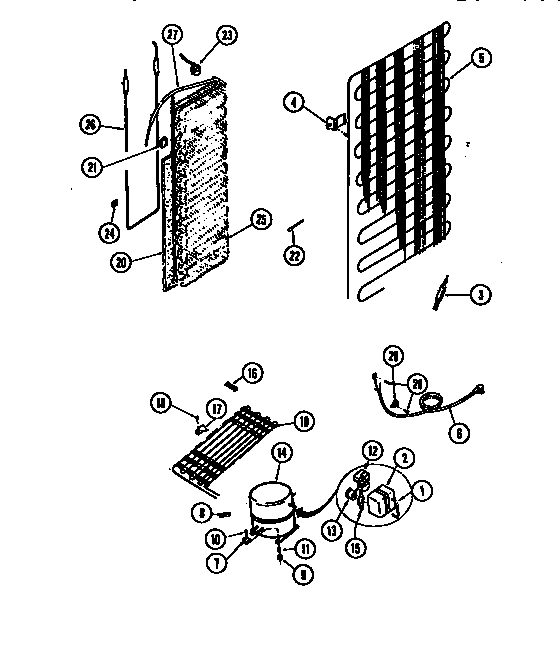

RS249JCD1 09 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*17181	WCI G183584
1	5303006412 Frigidaire Refrigerator Cover Mounting Strap
3	DRIER, REGULAR
3	WCI R900125
4	BRACKET, COND. MTG (4)
5	WCI G188643
6	CORD, SERVICE
7	WASHER, COMPRESSOR MOUNTING (4)
8	CLIP, COMPRESSOR MOUNTING (4)
9	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12	WCI G182225-05
13	WCI G188608
14	WCI G189461
15	RETAINER, OVERLOAD
16	WCI G171111
17	BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED)
18	218843801 Frigidaire Refrigerator Screw
19	WCI G188555
20	WCI G169641
21	WCI G169493
22	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI G167363
25	EVAPORATOR
26	WCI G175351
27	WCI G189609
28	5308000039 Frigidaire Refrigerator Screw
29	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
