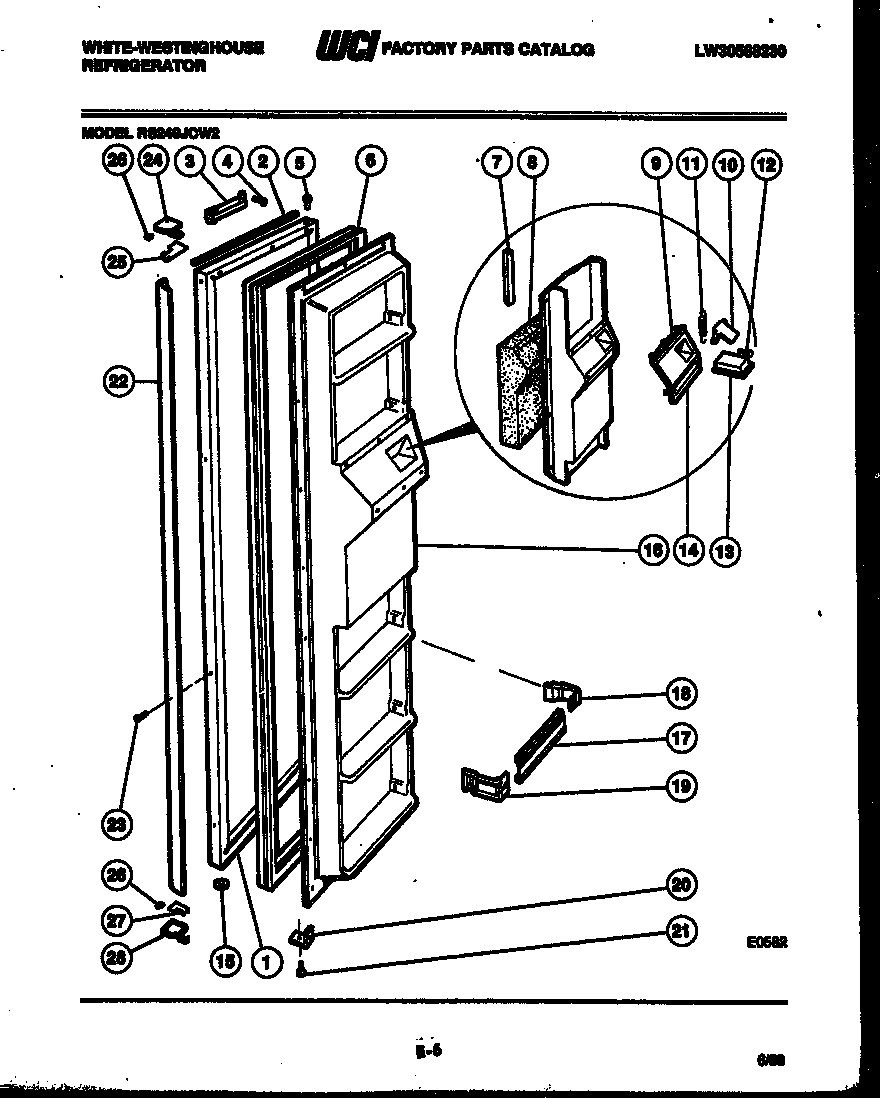

RS249JCD2 02 – FREEZER DOOR PARTS

Products

Position	Product
*10499	WCI G180613-01
1	WCI G188250-11
1A	WCI G152308-01
2	WCI G178328-05
3	DOOR CLOSER
4	WCI G169729
5	WCI G183139
6	WCI G180551-06
7	WCI G177720
8	WCI G187880
9	WCI G179017
10	WCI G175040-03
11	SPRING-FLIPPER
12	5304455650 Frigidaire Refrigerator Screw
13	WCI G180637
14A	PUSH NUT (6) (NON-ILLUSTRATED)
14	WCI G174402-01
15	BUSHING-LWR HINGE
16	WCI G180629-01
17	WCI 3018335
18	SUPPORT-RS (5)
19	SUPPORT-LS (5)
20	BUMPER-LIGHT SW.
21	5304455651 Frigidaire Refrigerator Screw
22	WCI G177141-09
23	WCI G185566
24	CAP
25	TRIM, TOP
26	CLIP
27	TRIM, BTM
28	CAP
