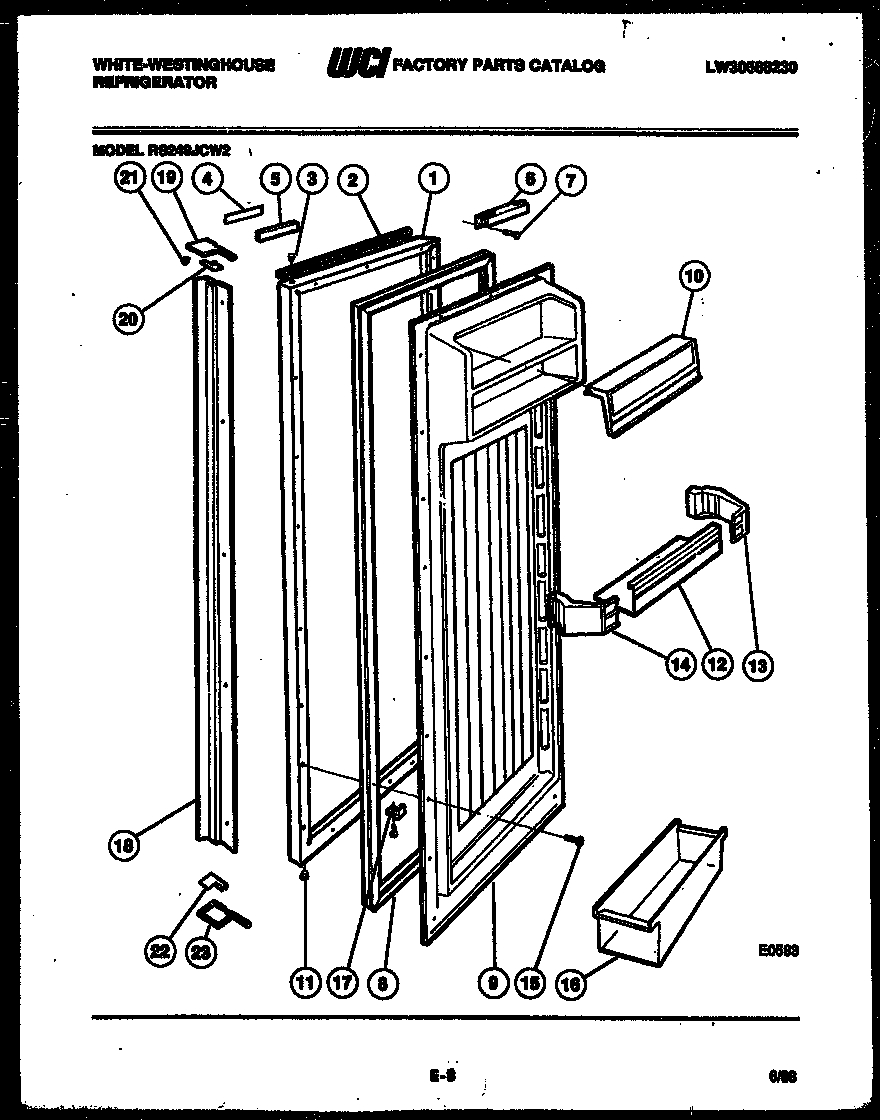

RS249JCD2 03 – REFRIGERATOR DOOR PARTS

Products

Position	Product
*10502	5308000716 Frigidaire Refrigerator Dish
*10502	WCI G180613-01
1A	WCI G152308-01
1	WCI 467B377A05
2	WCI G178328-04
3	WCI G183139
4	LABEL-NAMEPLATE (NON-ILLUSTRATED)
5	FRAME-NAMEPLATE
6	DOOR CLOSER
7	WCI G169729
8	WCI G180551-02
9	WCI G179992-01
10	WCI G179976-01
11	BEARING, HINGE (3)
12	WCI G164109-18
12B	WCI G167115
12A	WCI G101890
13	END CAP RS (2)
14	END CAP LS (2)
16	CONTAINER-EGG
17A	5304455651 Frigidaire Refrigerator Screw
17	BUMPER-LIGHT SW.
18	WCI G177141-09
19	CAP
20	TRIM, TOP
21	CLIP
22	TRIM, BTM
23	CAP
