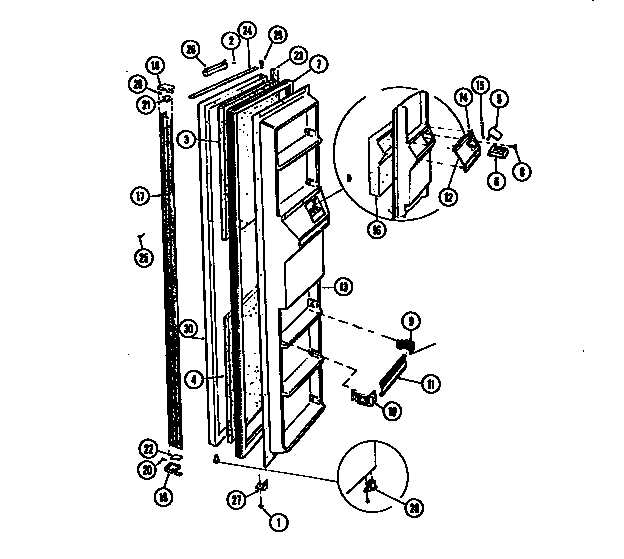

RS249JCF1 02 – DOOR PARTS

RS249JCF1 02 – DOOR PARTS

Products

PositionProduct
*17023WCI G152308-01
*17022TUBE-WATER INLET AND PILOT ASSY
*17023WCI G185266
1WCI G169729
3INSULATION, UPPER
4INSULATION LOWER
5WCI G175040-03
6WCI G180637
6AWCI G179017
7WCI G180551-06
85304455650 Frigidaire Refrigerator Screw
9SUPPORT-RS (5)
10SUPPORT-LS (5)
11FRONT
12WCI G174402-01
13A218843801 Frigidaire Refrigerator Screw
13WCI G180629-01
14PUSH NUT (6) (NON-ILLUSTRATED)
15SPRING-FLIPPER
16WCI G187880
17WCI G177141-09
18CAP
19CAP
20CLIP
21TRIM, TOP
22TRIM, BTM
23WCI G180613-01
24WCI G178328-05
25WCI G185566
26DOOR CLOSER
27BUMPER-LIGHT SW.
28BUSHING-LWR HINGE
29WCI G183139
30WCI 467B376A04
