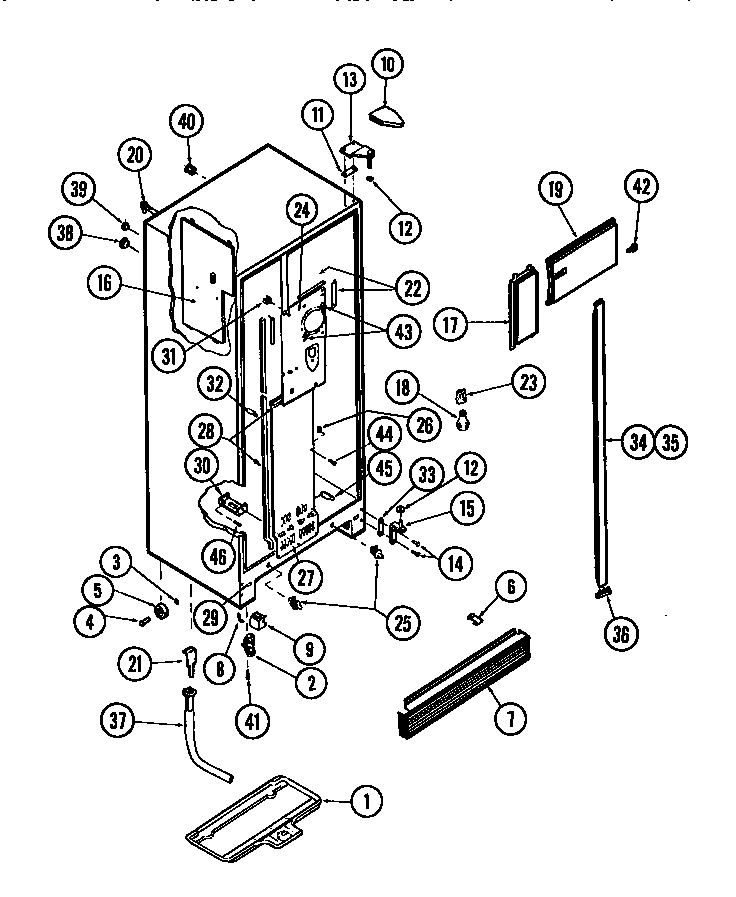

RS249JCF1 04 – CABINET PARTS

Products

Position	Product
*17085	SUPPORT
1	WCI G171125
2	ROLLER ASSY (2)
3	NUT, DAMPER MOUNTING
4	WCI G162809
5	ROLLER (2)
6	CLIP, GRILLE
7	WCI G174597-01
8	WCI G177743
8A	NUT, INLET TO SOLENOID VALVE
9	COVER-BOTTOM HINGE
10	COVER HINGE, COFFEE
11	WCI G183861
12	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
13	HINGE-TOP RS
13B	241710601 Frigidaire Refrigerator Screw
13A	WCI G183716
14	SCREW – 1/4 X 1 (2)
15B	WCI G141673
15D	WCI G142361
15C	NUT, SPEED (2)
15	BRACKET-LOWER HINGE
15A	HINGE-BOTTOM LS (NON-ILLUSTRATED)
16	WCI G174559
17	WCI G174712-03
18	WCI Q63749
19	WCI G169601-13
20	WCI G154156
20	215456100 Frigidaire Refrigerator Water Inlet Tube
21	WCI G171193
22	WCI G165233
23	218906802 Frigidaire Light Lamp Socket
24	WCI G174738
25	5303289051 Frigidaire Refrigerator Light Switch
26	WCI G162703
27	WCI G169477-03
28	GASKET KIT – COIL COVER
29	WCI G177635
30	WCI G185022
31	WCI G163669
32	WCI G169471
33	SHIM, HINGE
34	MULLION-COFE
35	WCI G169297
35A	WCI G169100
36	TRIM-MULLN-COFE
37	241957901 Frigidaire Refrigerator Tube-Drain
38	WCI G174733
39	WCI G174734
40	TUBE, INSULATION (2)
41	BOLT, HOUSING TO FRONT RAIL (2)
43	WCI G165177
44	216858001 Frigidaire Refrigerator Screw
44A	WCI G170839
45	WCI G164912-03
46	5304455650 Frigidaire Refrigerator Screw
