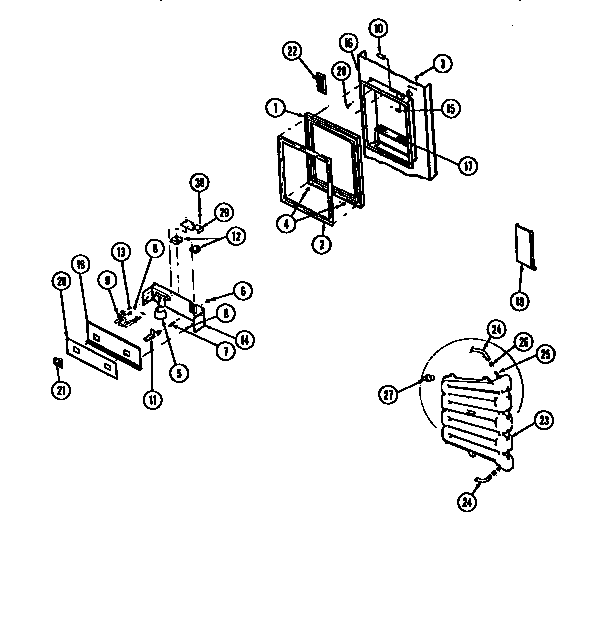

RS249JCF1 06 – ICE DOOR, DISPENSER AND WATER TANK

Products

Position	Product
*17128	WCI G182738
*17129	WCI G189635
*17128	WCI G189634
1	WCI G182518-05
2	WCI G182955-01
2A	PUSH NUT (6) (NON-ILLUSTRATED)
2B	WCI G185567
3	WCI G175246
4	CLIP-HSG FRAME (2)
5	SKIRT
6	WCI G174411
7	SPRING-WTR ACTUATOR
8	WCI G177724
9	WCI G177725
10	WCI G177729
11	WCI G185063-01
12	WCI G185542
13	WCI R900674
14	PLATE-SWITCH MTG
15	WCI 5304506475
16	WCI G188308-02
17	WCI G182551
18	WCI G163925-02
19	WCI G182643-01
20	WCI G182654-01
21	WCI G180649
22	WCI G182929
23	WCI R900930
24	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
25	WCI R900929
26	WCI R900928
27	WCI G163938
28	5304455650 Frigidaire Refrigerator Screw
29	WCI G174400
30	WCI G177686
