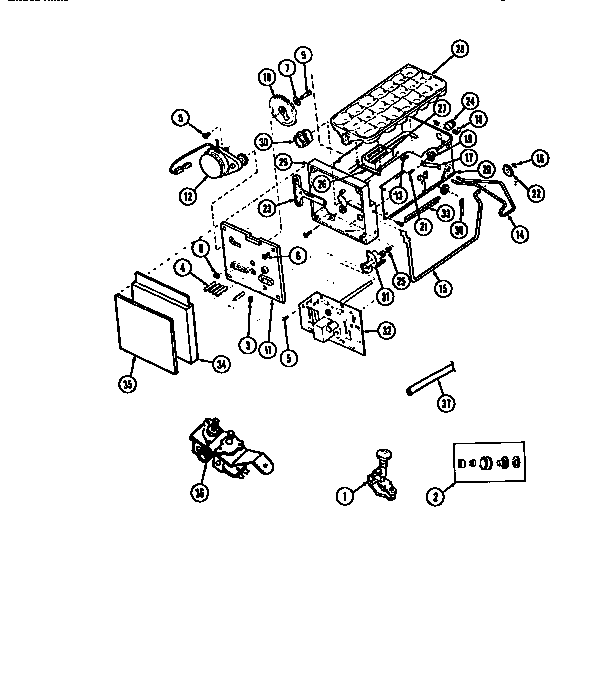

RS249JCH0 10 – ICE MAKER PARTS

Products

Position	Product
*17203	5304455650 Frigidaire Refrigerator Screw
*17202	SCREW, CHANNEL MOUNTING (3)
*17204	GUIDE, ICE MAKER TO DIVIDER
1	VALVE
2	WCI G159415
3	CLIP
4	CAM FOLLOWER
5	SCREW, MOTOR TO PLATE (2)
6	SCREW (4)
7	WASHER-CRANK SHAFT
8	NUT-HEX
9	WCI G174444
10	WCI G174484
11	PLATE, MOUNTING
12	MOTOR-ICE MAKER
13	WCI G174417
14	WIRE-SHUT OFF
15	SENSING ARM
16	RETAINER RING
17	SPRING-TRAY
18	WCI G174435
19	NUT-PUSH
20	WCI G174440
21	WCI G174442
22	BEARING-GAUGE ARM
23	RACK, GEAR
24	TRAY-PIVOT (NON-ILLUSTRATED)
25	WCI G174485
26	RETAINER, INSULATOR
27	WCI G174479
28	ICE TRAY
29	HOUSING-ICE MAKER
30	WCI G174492
31	WCI G174497
32	PC BOARD
33	WCI G175135
34	WCI G177709-03
35	WCI G180633
36	WCI G189174
37	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
38	WCI G175041
