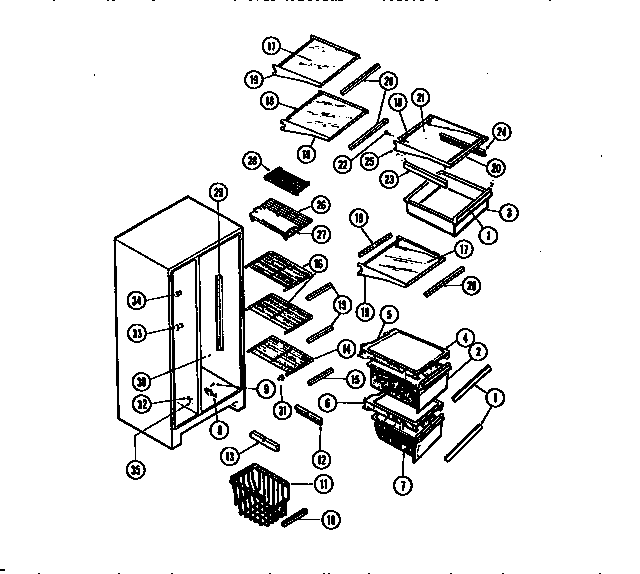

RS249JCH1 05 – SHELVES AND SUPPORTS

RS249JCH1 05 – SHELVES AND SUPPORTS

Written by

in

RS249JCH1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI G177343-06
2WCI G179709-01
3WCI G179915-01
4COVER-PAN UPPER
5GASKET-COVER UPR (2) (NON-ILLUSTRATED)
6COVER-PAN-LOWER
7WCI G179710-01
8WCI G164912-03
95304455650 Frigidaire Refrigerator Screw
10WCI G168625-07
11BASKET
12HANGER-BASKET RS
13WCI G186987
14SHELF, BOTTOM FREEZER
15WCI G187267-15
16WCI G180426-06
17WCI G171654-31
18TRIM-REAR (NON-ILLUSTRATED)
19WCI G178323-07
20WCI G187267-13
21WCI G171654-32
22SCREW-HANGER (2) (NON-ILLUSTRATED)
23HANGER, LH
24HANGER, RH
25WCI G187217-03
26WCI G174571-01
27LABEL-SHELF-LOWER (NON-ILLUSTRATED)
28WCI G174556-01
28ALABEL-SHELF-UPPER (NON-ILLUSTRATED)
29CHANNEL-RS & LS
305304455852 Frigidaire Refrigerator Screw
315304509705 Frigidaire Refrigerator Grommet
32WCI G163952
33ASCREW – SUPPORT TO LINER (8)
33SUPPORT, SHELF (8)
34SUPPORT, ICE MAKER (2)
34AWCI G177636
35BWCI G167582
35WCI G166800
35AWCI G166801
35CBUTTON, PLUG, LINER (2)
