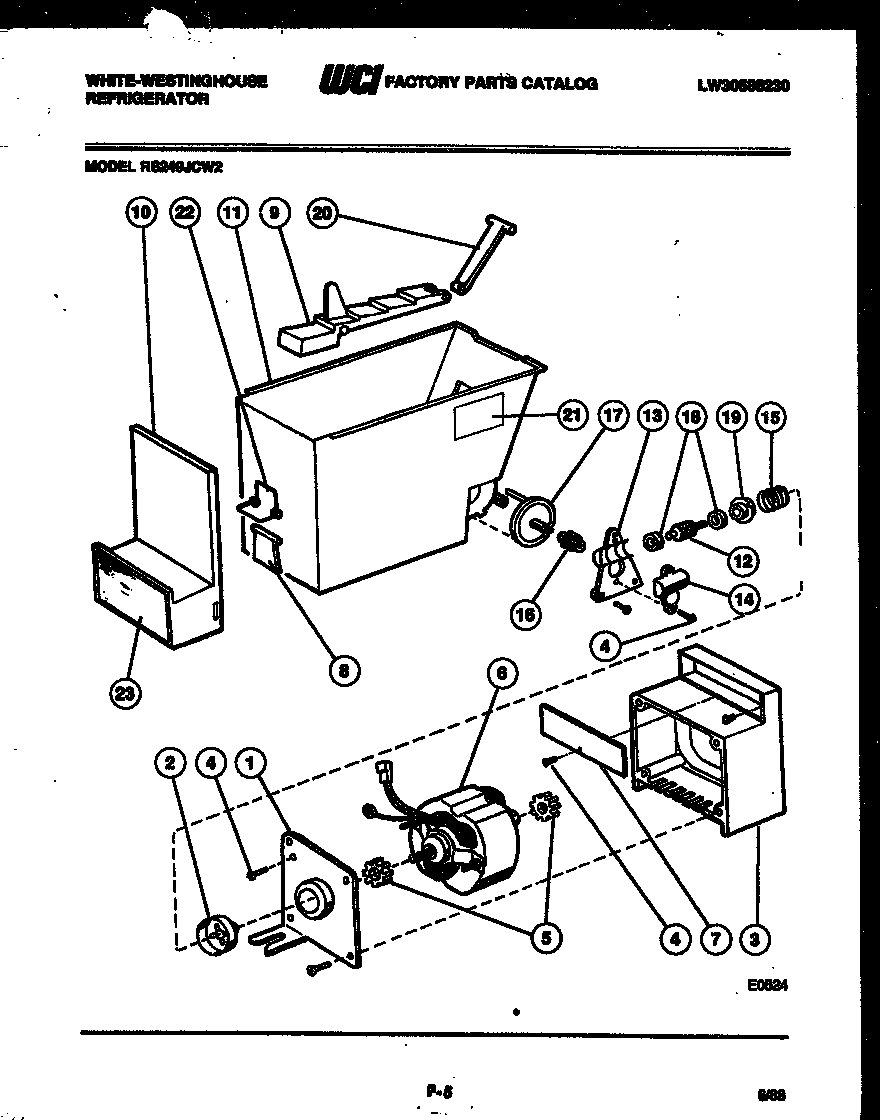

RS249JCH2 08 – ICE DISPENSER

Products

Position	Product
1	BRACKET-ICE DISP MTR
2	COUPLING-ICE DISP MOTOR
3	HOUSING-ICE DISP MOTOR
4	5304455650 Frigidaire Refrigerator Screw
5	GROMMET-ICE DISP MOTOR (2)
6	WCI G188235
7	COVER-ICE DISP MOTOR
8	WCI G174407-03
9	WCI G174413-03
10	WCI G174416-05
11	ICE CONTAINER
12	WCI G174406
13	HOUSING, ICE RAM DRIVE
14	COVER-HOUSING ICE RAM
15	SPRING-ILE DISP DRIVE
16	WCI G174702
17	DISC, ICE RAM DRIVE
18	WCI G177695
19	COUPLING-ICE DISP CONT
20	DEFLECTOR
21	WCI G180632
22	SPRING-ICE DOOR
23	LABEL-ICE DISP
