RS249JCV0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

RS249JCV0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Written by

in

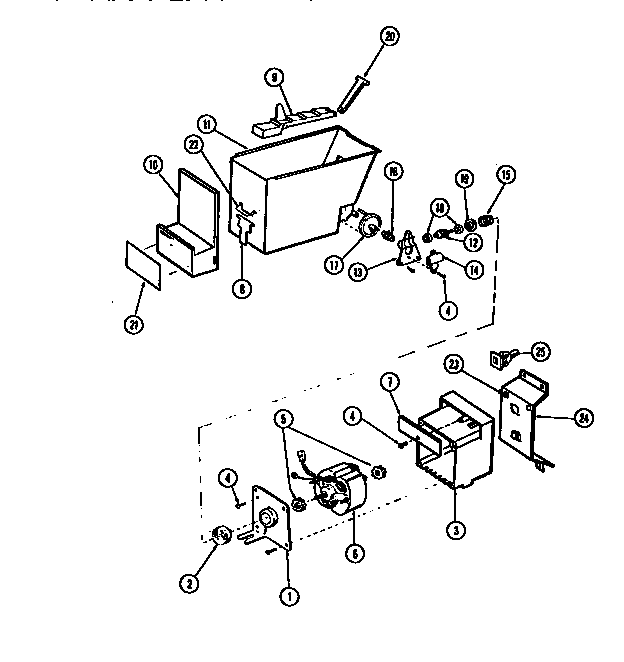

RS249JCV0 07 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

PositionProduct
1WCI R900978
25308000010 Frigidaire Refrigerator Evaporator Fan Blade
3RING, FAN ORIFICE
4WCI G185302
5WCI G185303
6G187559 Frigidaire Refrigerator Bushing
75300158289 Frigidaire Evaporator Fan Motor
8WCI G164571
9WCI G164575
10WCI G164523
11KNOB, DAMPER CONT.
12WCI G185373
13WCI G165545
14WCI G166068
15COVER CONT. BRACKET
16WCI G162205-05
17WCI G107080
185304455649 Frigidaire Refrigerator Screw
19TUBE
20WCI G164788
21WCI G164906-01
22WCI G165543
23SOCKET LIGHT
24WCI Q63749
25215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
26WCI G166802
27WCI G166803
28WCI G167582
295304455650 Frigidaire Refrigerator Screw
305308000039 Frigidaire Refrigerator Screw
