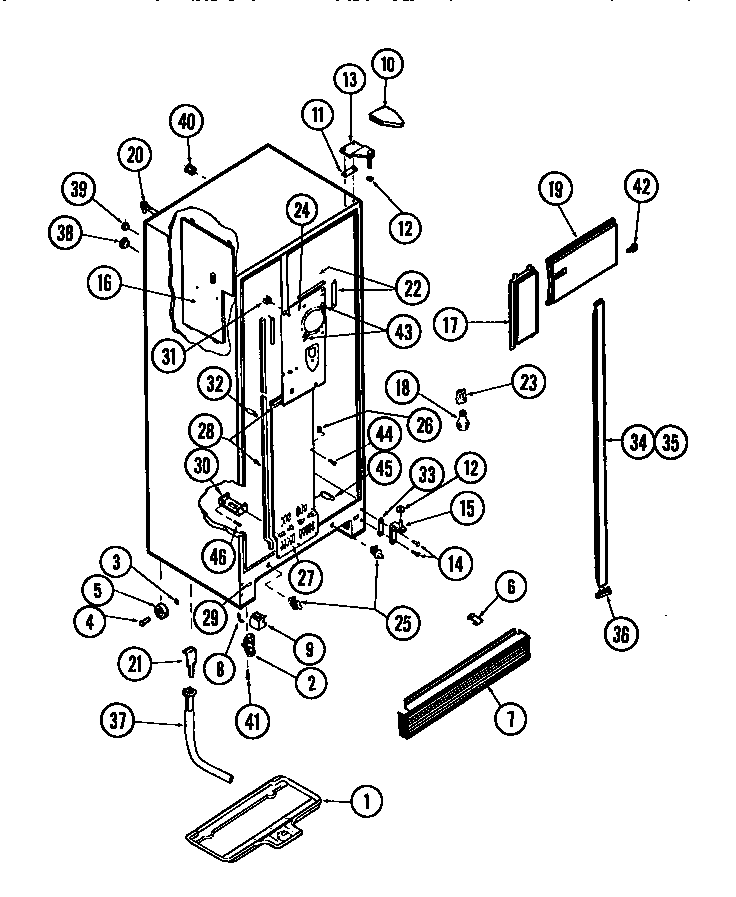

RS249JCW0 04 – CABINET PARTS

Products

Position	Product
*17085	SUPPORT
1	WCI G171125
2	ROLLER ASSY (2)
3	NUT, DAMPER MOUNTING
4	WCI G162809
5	ROLLER (2)
6	CLIP, GRILLE
7	WCI G174597-01
8A	NUT, INLET TO SOLENOID VALVE
8	WCI G177743
9	COVER-BOTTOM HINGE
10	COVER HINGE, WHITE
11	WCI G183861
12	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
13B	241710601 Frigidaire Refrigerator Screw
13A	WCI G183716
13	HINGE-TOP RS
14	SCREW – 1/4 X 1 (2)
15	BRACKET-LOWER HINGE
15A	HINGE-BOTTOM LS (NON-ILLUSTRATED)
15C	NUT, SPEED (2)
15D	WCI G142361
15B	WCI G141673
16	WCI G174559
17	WCI G174712-03
18	WCI Q63749
19	WCI G169601-13
20	215456100 Frigidaire Refrigerator Water Inlet Tube
20	WCI G154156
21	WCI G171193
22	WCI G165233
23	218906802 Frigidaire Light Lamp Socket
24	WCI G174738
25	5303289051 Frigidaire Refrigerator Light Switch
26	WCI G162703
27	WCI G169477-03
28	GASKET KIT – COIL COVER
29	WCI G177635
30	WCI G185022
31	WCI G163669
32	WCI G169471
33	SHIM, HINGE
34	WCI G164643-01
35A	WCI G169100
35	WCI G169297
36	MULLION TRIM-WHITE
37	241957901 Frigidaire Refrigerator Tube-Drain
38	WCI G174733
39	WCI G174734
40	TUBE, INSULATION (2)
41	BOLT, HOUSING TO FRONT RAIL (2)
42	WCI G165177
43	NUT, ORIFICE (2)
44A	WCI G170839
44	216858001 Frigidaire Refrigerator Screw
45	WCI G164912-03
46	5304455650 Frigidaire Refrigerator Screw
