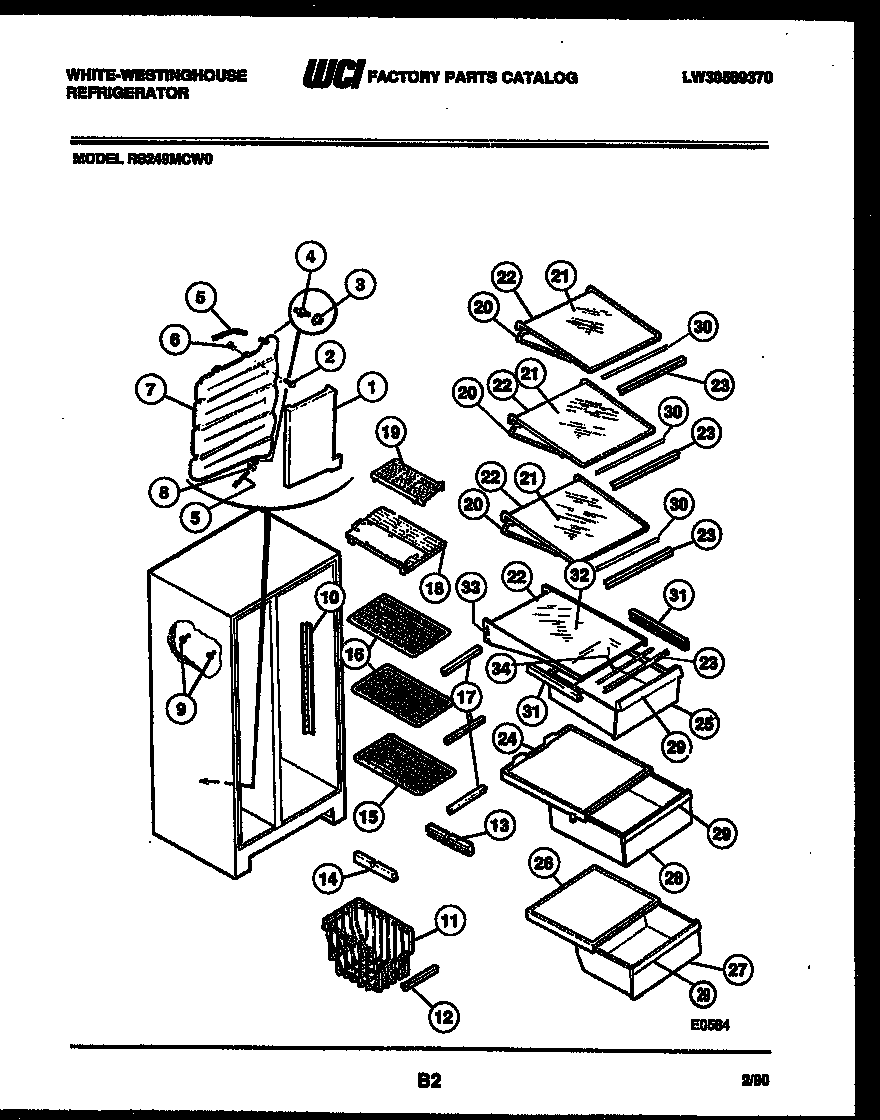

RS249MCD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*25790RACK – HANGING – EGG
*257905304509705 Frigidaire Refrigerator Grommet
*25790WCI 5303207090
1WCI 5308010332
1A5304455650 Frigidaire Refrigerator Screw
2131420300 Frigidaire Screw
3WCI 5308015613
4CONNECTOR – TUBE
55308010366 Frigidaire Refrigerator P1-Water Inlet Tube
6SUPPORT-TANK (3)
7WATER TANK
8CLAMP-SUCTION TUBE (NON-ILLUSTRATED)
9WCI 5303001291
9ASCREW (2)
10CHANNEL-SHELF MTG (2)
10A5304455852 Frigidaire Refrigerator Screw
11WCI 5308001015
12WCI 5303208853
13WCI 5303001098
14WCI 5303001099
15WCI 08001031
16SHELF-FREEZER, (3)
17TRIM – MK & BASKET SHELF (2)
18ASHELF-FREEZER
18BSUPPORT-SHELF (2)
18CSCREW (2)
19ALABEL-SHELF (NON-ILLUSTRATED)
19SHELF-FREEZER (UPPER)
20WCI 5303200758
21WCI 5303208857
22WCI 5303207080
23WCI 5303207081
24COVER-CRISPER, MIDDLE
24AGASKET-CRISPER COVER
25WCI 5303207092
26WCI 5316972401
27WCI 5303207078
28WCI 5303207077
29WCI 5303207076
30WCI 3200683
31BWCI 08014528
31WCI 5303207088
31AWCI 5303207087
32WCI 5303207082
32AWCI 3204640
33WCI 5303207089
34WCI 5303207091
