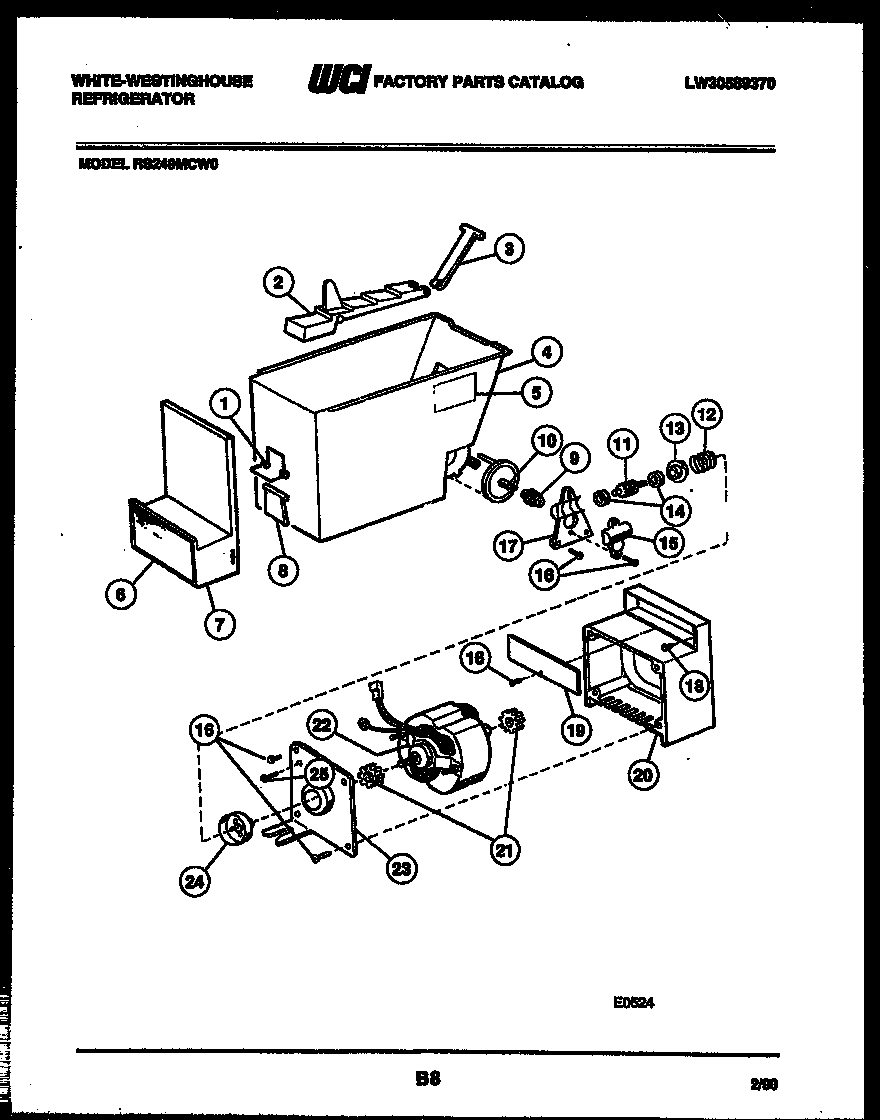

RS249MCD0 08 – ICE DISPENSER

Products

Position	Product
*25802	WCI 3001247
1	SPRING-ICE DOOR
2	WCI 5301123547
3	WCI 5317769703
4	WCI 5301138760
5	LABEL-ICE DISPENSER
6	WCI 5303208862
7	WCI 5303015828
8	WCI 5303017843
9	WORM GEAR-ICE RAM
10	WCI 5301123568
11	WORM-ICE RAM
12	WCI 5301123767
13	COUPLING-ICE DISP CONTAINER
14	WCI 5301123508
15	COVER-HOUSING ICE RAM
17	WCI 5300174408
18	5304455852 Frigidaire Refrigerator Screw
19	COVER-ICE DISP MTR
20	HOUSING-ICE DISP MTG
21	GROMMET-ICE DISP MTR (2)
22	WCI 5308017049
23	WCI 5303001106
24	WCI 5301123771
25	5304455650 Frigidaire Refrigerator Screw
